INSTALLATION

PROCEDURE

1. INSTALL COLUMN SHIFT ASSEMBLY

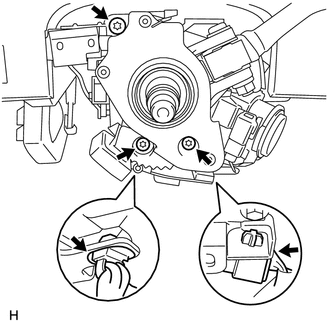

(a) Using a T30 "TORX" wrench, install the column shift with the 3 bolts.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

(b) Connect the connector and attach the harness clamp.

NOTICE:

Make sure to connect the cable end so that the inner cable is not twisted. Confirm that the ridged side of the cable end is facing upward.

2. ADJUST SHIFT LEVER POSITION

3. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

(See page )

4. INSPECT SHIFT LEVER POSITION
