COMPONENTS

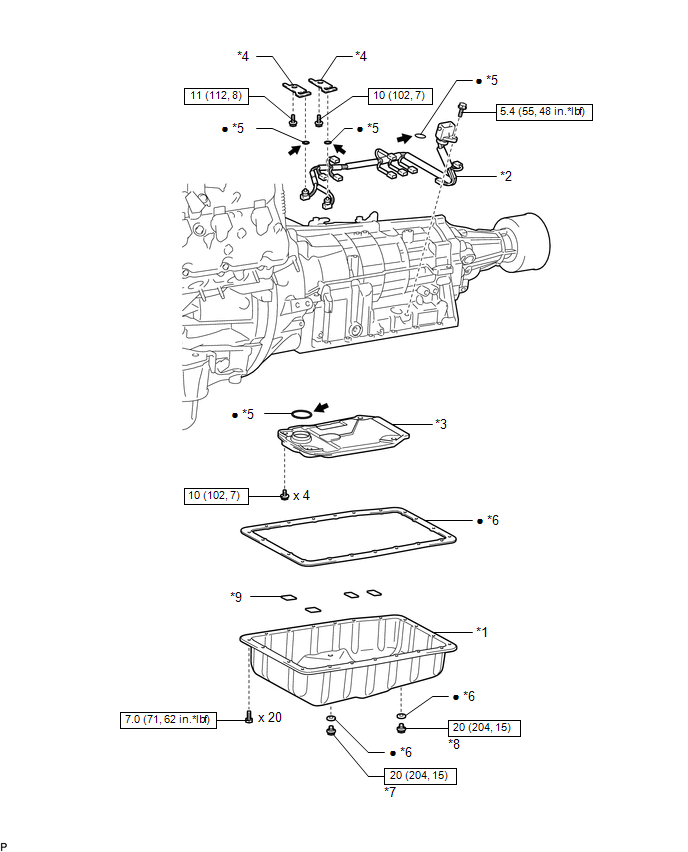

ILLUSTRATION

*1	AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY	*2	TRANSMISSION WIRE
*3	VALVE BODY OIL STRAINER ASSEMBLY	*4	TEMPERATURE SENSOR CLAMP
*5	O-RING	*6	GASKET
*7	OVERFLOW PLUG	*8	DRAIN PLUG
*9	MAGNET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine ATF WS	-	-
