Toyota Tundra Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TRANSMISSION WIRE

(a) Coat a new O-ring with ATF, and install it to the transmission wire connector.

(b) Install the transmission wire with the bolt.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(c) Connect the transmission wire connector.

HINT:

Push up the lever until the claw of the transmission wire connector makes a connection sound.

2. CONNECT TRANSMISSION WIRE

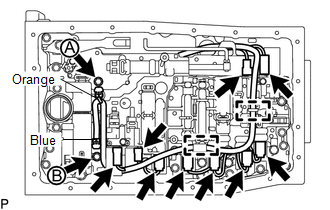

(a) Connect the 9 solenoid valve connectors.

(b) Coat the 2 new O-rings with ATF, and install it to the 2 ATF temperature sensors.

(c) Connect the 2 ATF temperature sensors with the 2 clamps and 2 bolts.

Torque:

for bolt A :

10 N·m {102 kgf·cm, 7 ft·lbf}

for bolt B :

11 N·m {112 kgf·cm, 8 ft·lbf}

HINT:

Each bolt length is indicated below.

12 mm (0.472 in.) for bolt A

36 mm (1.41 in.) for bolt B

(d) Attach the wire harness to the 2 clamps.

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

(a) Coat a new O-ring with ATF, and install it to the oil strainer.

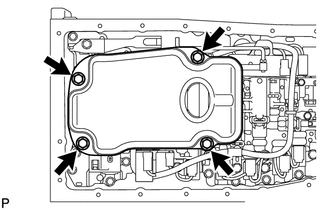

(b) Install the oil strainer with the 4 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

NOTICE:

Be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.

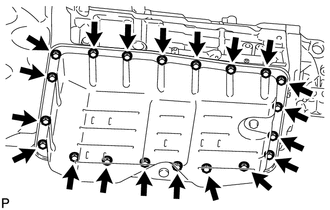

(a) Install a new gasket and the oil pan with the 20 bolts.

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

5. ADD AUTOMATIC TRANSMISSION FLUID

(a) Add automatic transmission fluid (See page ).
