Toyota Tundra Service Manual: Parts Location

PARTS LOCATION

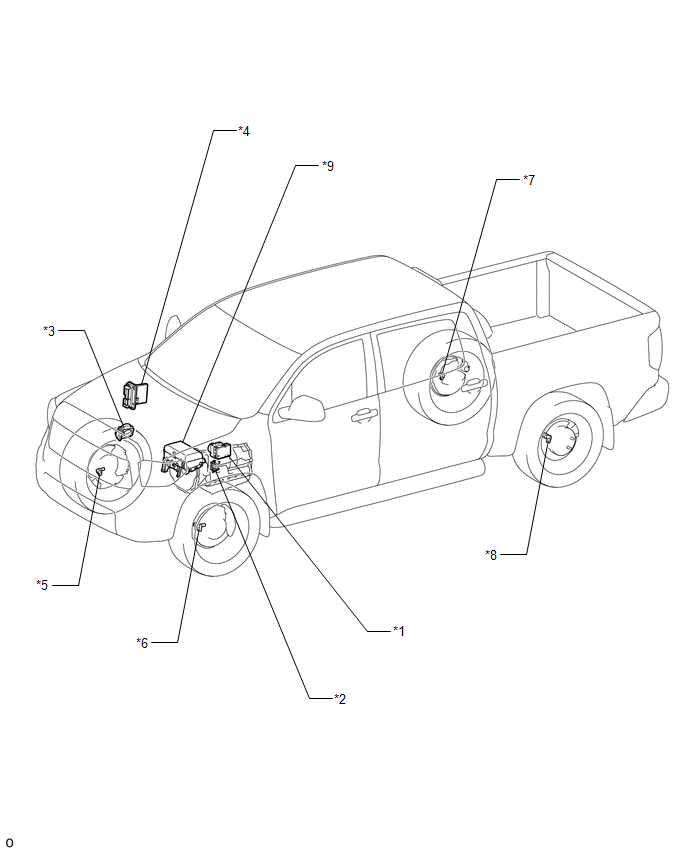

ILLUSTRATION

*1

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*3

THROTTLE BODY WITH MOTOR ASSEMBLY

*4

ECM

*5

FRONT SPEED SENSOR RH

*6

FRONT SPEED SENSOR LH

*7

REAR SPEED SENSOR RH

*8

REAR SPEED SENSOR LH

*9

ENGINE ROOM RELAY BLOCK ASSEMBLY, JUNCTION BLOCK

- EFI NO. 1 FUSE

- IGN FUSE

-

-

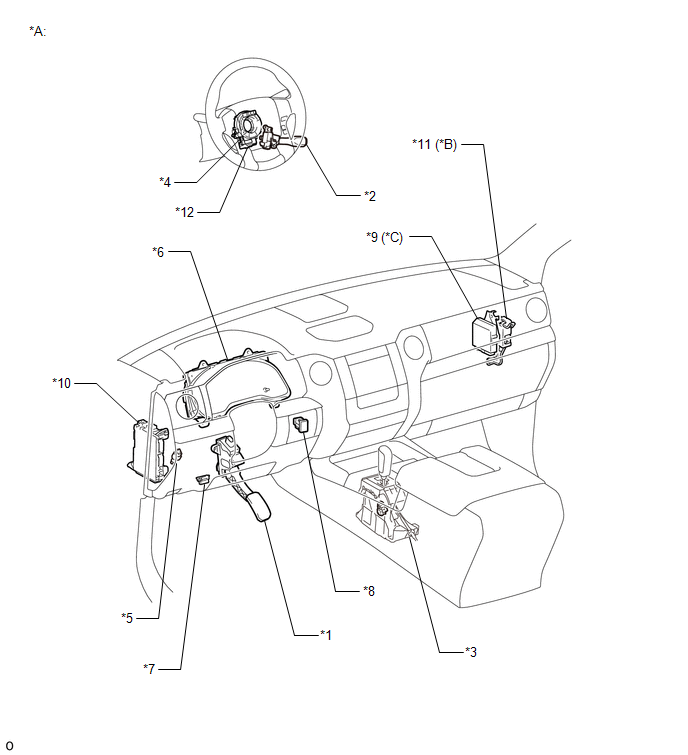

ILLUSTRATION

*A

for Floor Shift Type

*B

for Trailer Brake Control System

*C

for 4WD

-

-

*1

ACCELERATOR PEDAL SENSOR ASSEMBLY

*2

CRUISE CONTROL MAIN SWITCH

*3

TRANSMISSION FLOOR SHIFT ASSEMBLY

*4

SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

*5

STOP LIGHT SWITCH ASSEMBLY

*6

COMBINATION METER ASSEMBLY

*7

DLC3

*8

VSC OFF SWITCH (TRACTION CONTROL SWITCH)

*9

4 WHEEL DRIVE CONTROL ECU

*10

DRIVER SIDE JUNCTION BLOCK

- STOP FUSE

- BKUP LP FUSE

- ECU-IG1 NO. 4 FUSE

*11

TRAILER BRAKE CONTROL ECU (BRAKE CONTROL WITH BRACKET RELAY)

*12

CRUISE CONTROL SWITCH WIRE

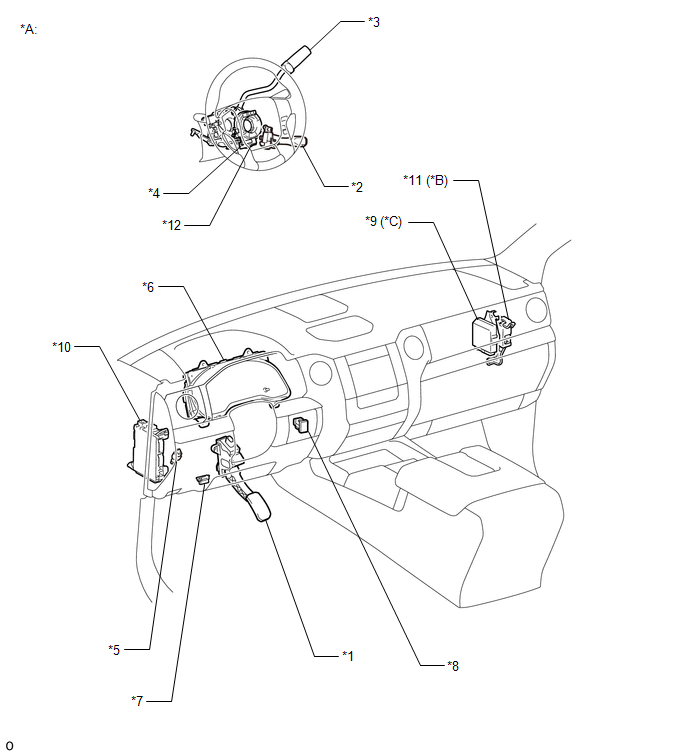

ILLUSTRATION

*A

for Column Shift Type

*B

for Trailer Brake Control System

*C

for 4WD

-

-

*1

ACCELERATOR PEDAL SENSOR ASSEMBLY

*2

CRUISE CONTROL MAIN SWITCH

*3

COLUMN SHIFT SHIFT LEVER SUB-ASSEMBLY

*4

SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

*5

STOP LIGHT SWITCH ASSEMBLY

*6

COMBINATION METER ASSEMBLY

*7

DLC3

*8

VSC OFF SWITCH (TRACTION CONTROL SWITCH)

*9

4 WHEEL DRIVE CONTROL ECU

*10

DRIVER SIDE JUNCTION BLOCK

- STOP FUSE

- ECU-ACC FUSE

- ECU-IG1 NO. 4 FUSE

*11

TRAILER BRAKE CONTROL ECU (BRAKE CONTROL WITH BRACKET RELAY)

*12

CRUISE CONTROL SWITCH WIRE
