OPERATION CHECK

CHECK LANE DEPARTURE ALERT MAIN SWITCH

(a) Check the lane departure alert main switch (steering pad switch assembly) on/off operation.

(1) Turn the ignition switch to ON.

(2) Confirm that the lane departure alert indicator (green) in the combination meter assembly illuminates or turns off when the lane departure alert main switch (steering pad switch assembly) is pressed.

HINT:

The ON/OFF status of the lane departure alert system remains unchanged when the ignition switch is turned off and back to ON.

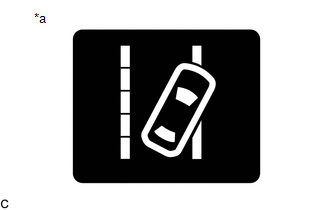

*a

Lane Departure Alert Indicator

    Indicator Circuit

    Parts Location
