Toyota Tundra Service Manual: Components

Toyota Tundra Service Manual / Engine, Hybrid System / Differential / Front Differential Carrier Oil Seal(for 4wd) / Components

COMPONENTS

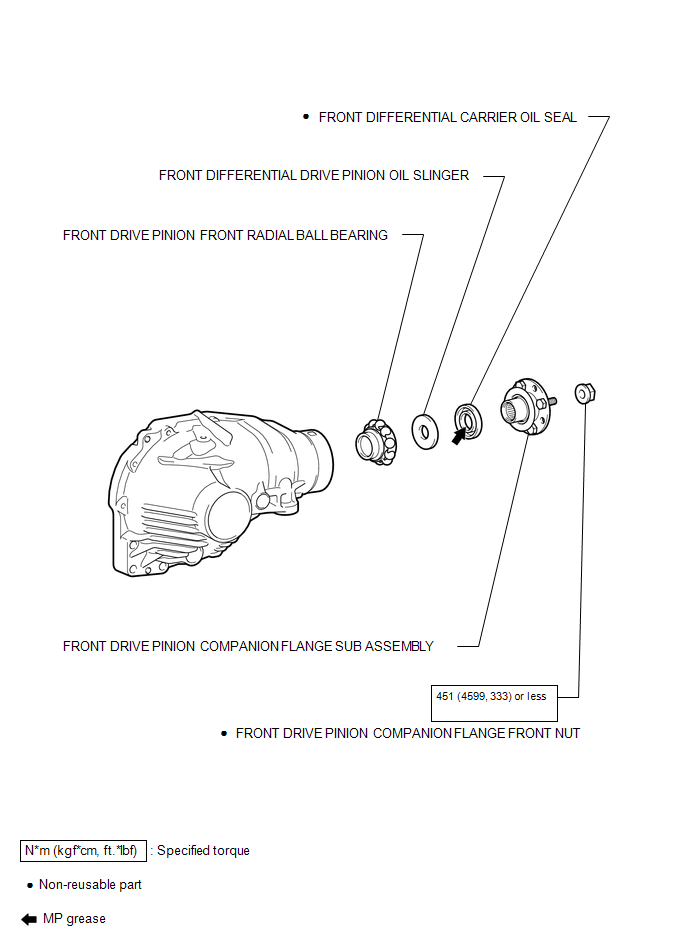

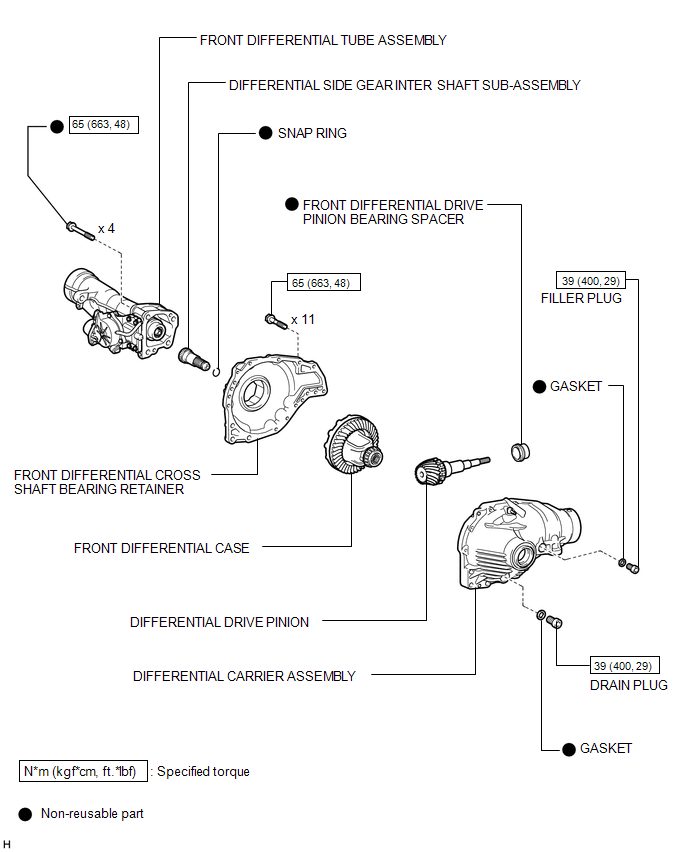

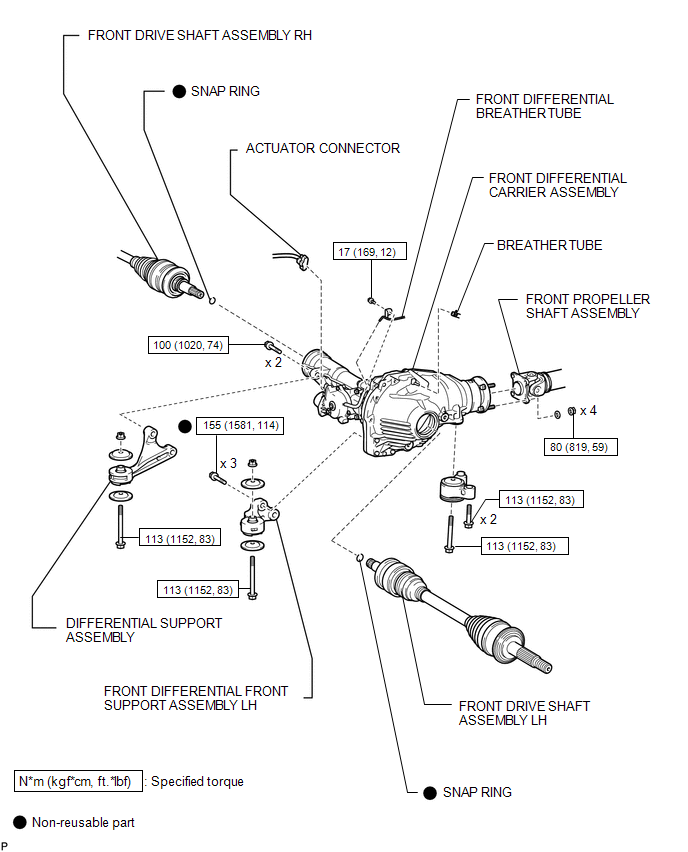

ILLUSTRATION

Front Differential Carrier Oil Seal(for 4wd)

Replacement
