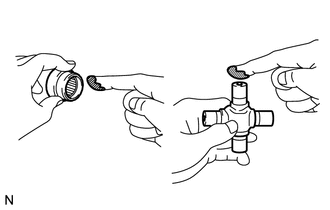

REASSEMBLY PROCEDURE 1. INSTALL FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING (a) Apply MP grease to a new spider and bearings. NOTICE: Be careful not to apply too much grease. (b) Fit the spider to the yoke.
(d) Insert the spider bearing into the spider journal portion, and then measure dimension B of the universal joint. NOTICE: When measuring dimension B, fix the spider and needle roller bearings in a vise and hold them firmly together.
2. INSPECT FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING

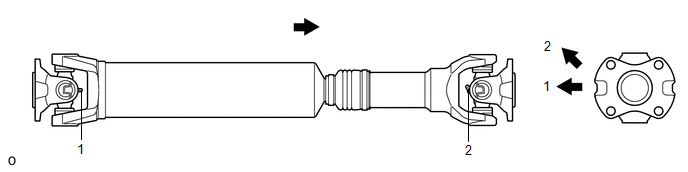

3. INSPECT FRONT PROPELLER SHAFT ASSEMBLY HINT: When replacing the spider bearing, make sure that the grease fitting assembly hole is facing in the direction shown in the illustration. Text in Illustration
|
