DISASSEMBLY

PROCEDURE

1. REMOVE FRONT NO. 1 LOWER ARM BUSH LH

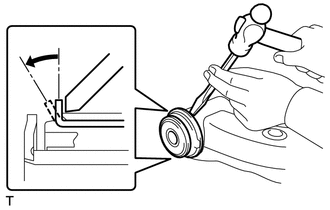

(a) Using a chisel and hammer, pry the flange of the bush outward.

(b) Using SST, remove the bush.

SST: 09950-40011

09951-04010

09952-04010

09953-04020

09954-04010

09955-04011

09957-04010

09958-04011

SST: 09950-60010

09951-00540

2. REMOVE FRONT NO. 2 LOWER ARM BUSH LH

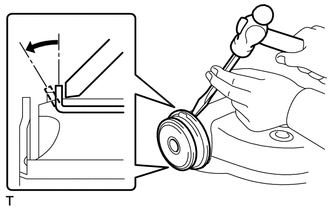

(a) Using a chisel and hammer, pry the flange of the bush outward.

(b) Using SST, remove the bush.

SST: 09950-40011

09951-04010

09952-04010

09953-04020

09954-04020

09955-04011

09957-04010

09958-04011

SST: 09950-60010

09951-00650

3. REMOVE FRONT NO. 1 SPRING BUMPER LH

(a) Remove the No. 1 spring bumper from the vehicle.
