Toyota Tundra Service Manual: Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE FRONT SUSPENSION UPPER ARM BUSH

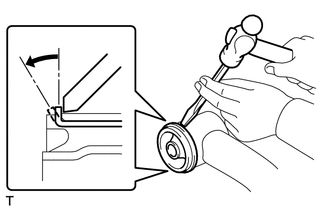

(a) Using a hammer and chisel, strike and bend the entire flange of the upper arm bush as shown in the illustration.

(b) Using SST and a press, press out the bush.

SST: 09613-26010

SST: 09710-22021

09710-01031

SST: 09950-00020

2. REMOVE FRONT UPPER BALL JOINT DUST COVER LH

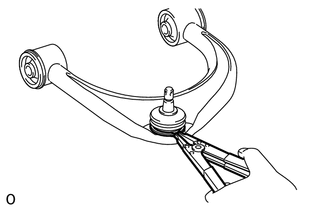

(a) Using a snap ring expander, remove the dust cover set ring.
