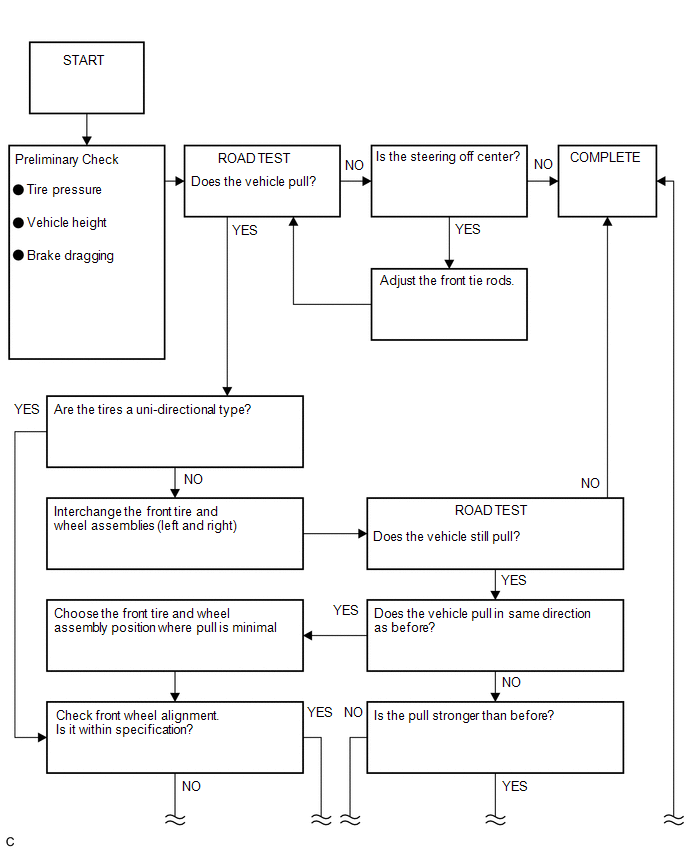

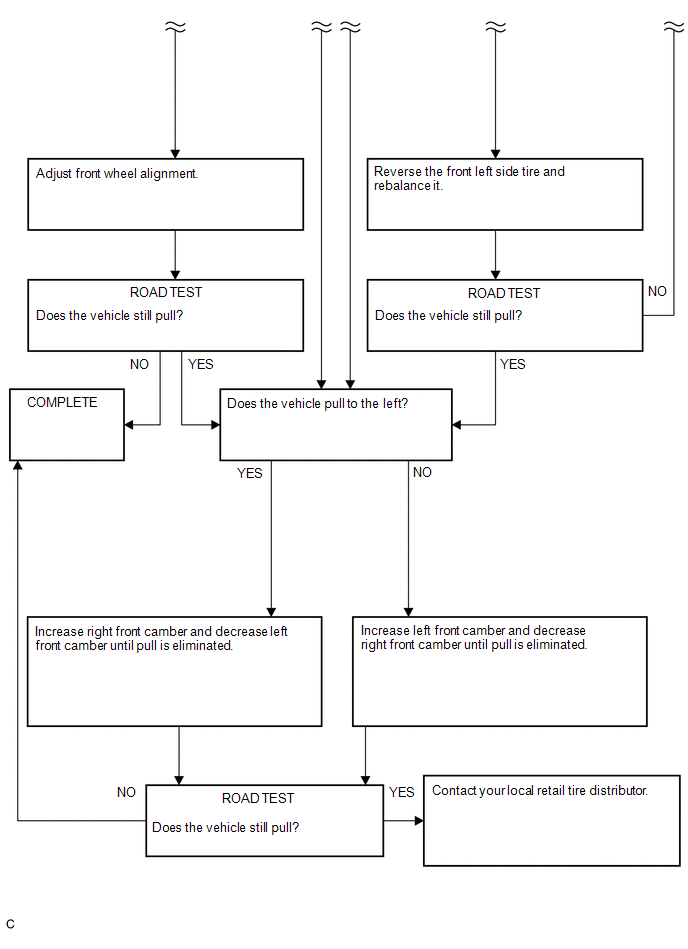

HOW TO PROCEED WITH TROUBLESHOOTING HINT: This is a flowchart for vehicle pull.
 |
Toyota Tundra Service Manual > Rear View Monitor System(for Navigation Receiver Type): Image from Camera for Rear View Monitor is Abnormal
DESCRIPTION This is the display signal circuit between the navigation receiver assembly and the television camera assembly. WIRING DIAGRAM PROCEDURE 1. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEVISION CAMERA ASSEMBLY) NG REPAIR OR REPLACE HARNESS OR CONNECTOR OK 2. CHECK NAVIGA ...
