Toyota Tundra Service Manual: Parts Location

PARTS LOCATION

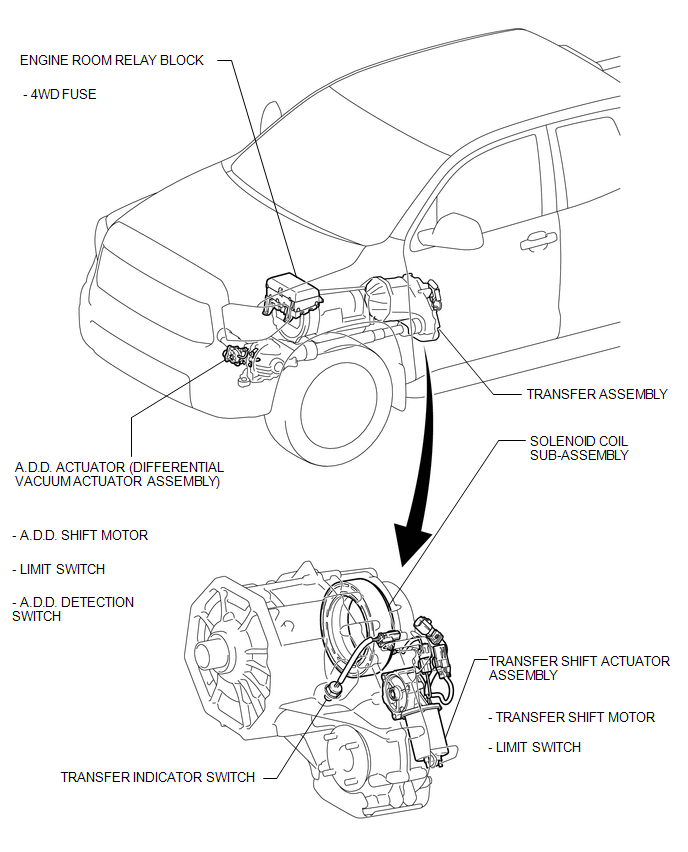

ILLUSTRATION

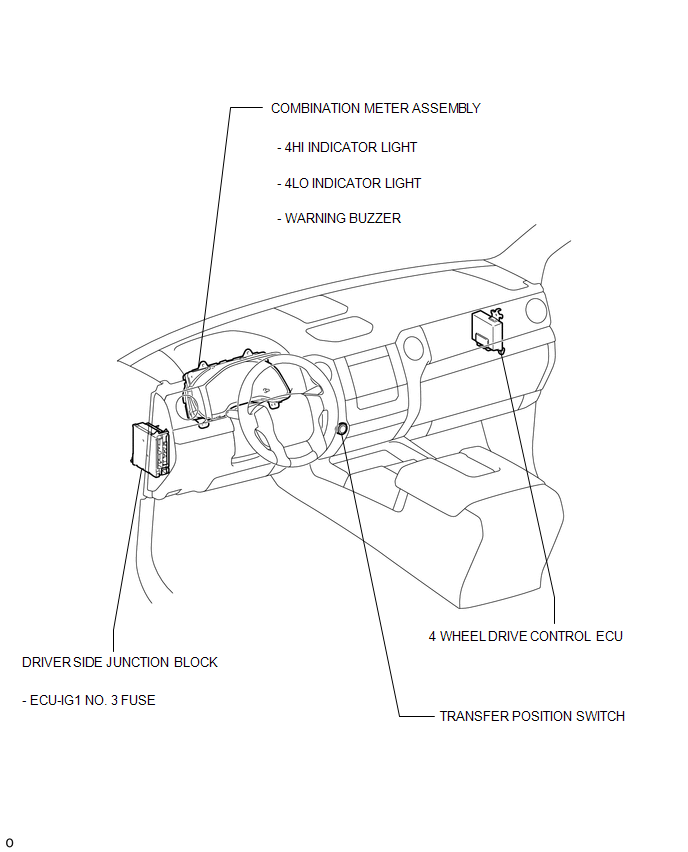

ILLUSTRATION

    Four Wheel Drive (4WD) Low Switch Circuit Range / Performance (P2772)

    Precaution
