Toyota Tundra Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL VANE PUMP ASSEMBLY

HINT:

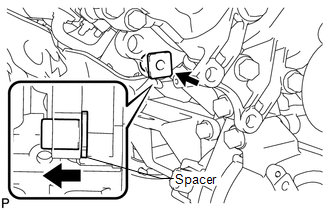

Before performing the following procedures, move the spacer until the vane pump can be installed.

(a) Install the vane pump with the 2 bolts.

Torque:

28 N·m {286 kgf·cm, 21 ft·lbf}

2. CONNECT PRESSURE FEED TUBE

(a) Install a new gasket to the pressure feed tube.

(b) Install the pressure feed tube with the union bolt.

Torque:

51 N·m {520 kgf·cm, 38 ft·lbf}

3. CONNECT POWER STEERING OIL PRESSURE SENSOR CONNECTOR

(a) Connect power steering oil pressure sensor connector.

4. CONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE

(a) Connect the pump hose with the clip.

5. CONNECT WIRE HARNESS CLAMP

(a) Connect the wire harness clamp.

6. INSTALL FAN AND GENERATOR V BELT

7. INSTALL AIR CLEANER ASSEMBLY

8. INSTALL V-BANK COVER SUB-ASSEMBLY

9. ADD POWER STEERING FLUID

10. BLEED POWER STEERING FLUID

11. INSPECT FOR POWER STEERING FLUID LEAK

12. INSTALL NO. 1 ENGINE UNDER COVER

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

Some systems need to be initialized after the cable is reconnected (See page ).

    Inspection

    Reassembly
