Toyota Tundra Service Manual: Parts Location

PARTS LOCATION

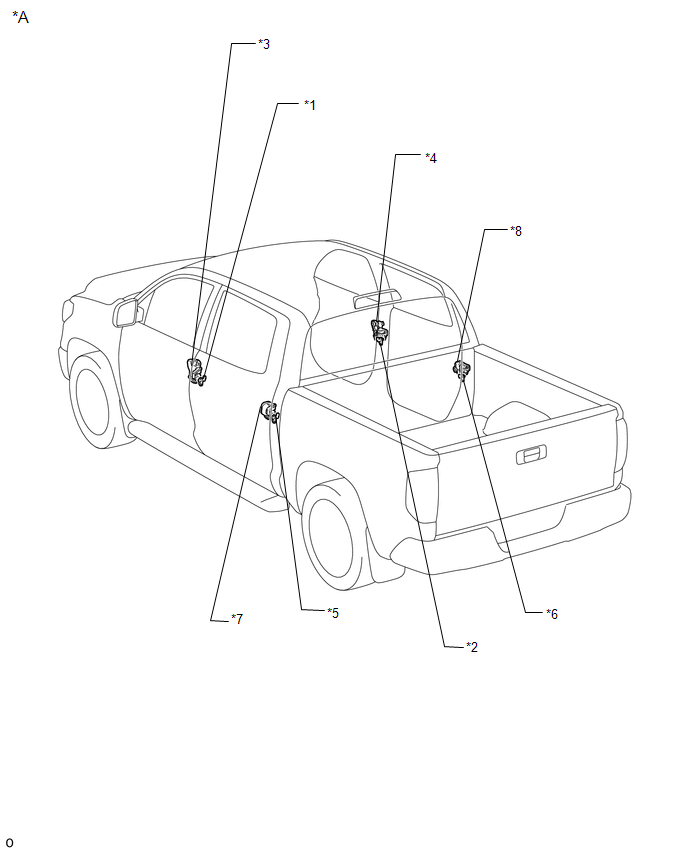

ILLUSTRATION

*A

for CrewMax

-

-

*1

FRONT DOOR COURTESY SWITCH LH

*2

FRONT DOOR COURTESY SWITCH RH

*3

FRONT DOOR LOCK ASSEMBLY LH

*4

FRONT DOOR LOCK ASSEMBLY RH

*5

REAR DOOR COURTESY SWITCH LH

*6

REAR DOOR COURTESY SWITCH RH

*7

REAR DOOR LOCK ASSEMBLY LH

*8

REAR DOOR LOCK ASSEMBLY RH

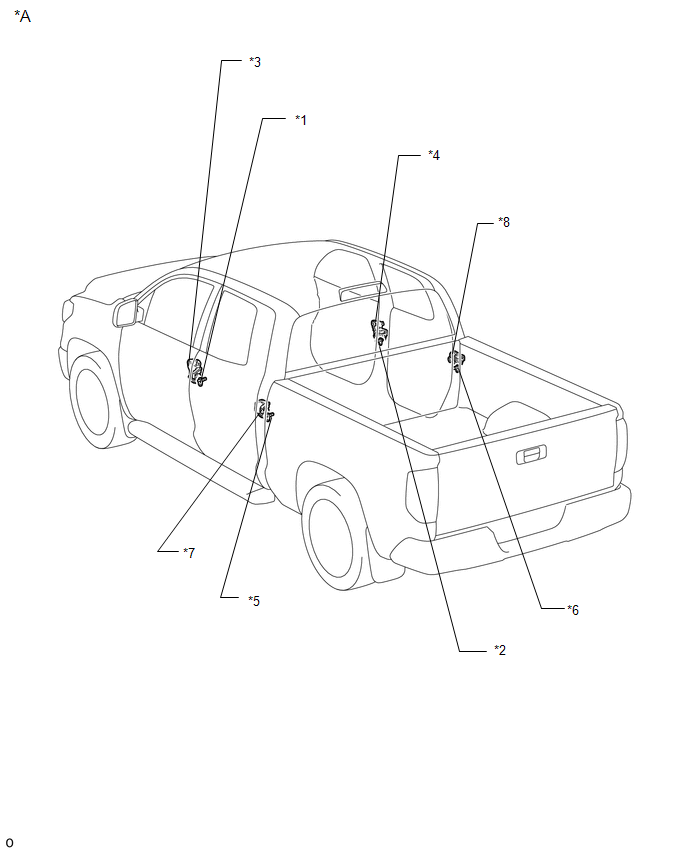

ILLUSTRATION

*A

for Double Cab

-

-

*1

FRONT DOOR COURTESY SWITCH LH

*2

FRONT DOOR COURTESY SWITCH RH

*3

FRONT DOOR LOCK ASSEMBLY LH

*4

FRONT DOOR LOCK ASSEMBLY RH

*5

REAR DOOR COURTESY SWITCH LH

*6

REAR DOOR COURTESY SWITCH RH

*7

REAR DOOR LOCK ASSEMBLY LH

*8

REAR DOOR LOCK ASSEMBLY RH

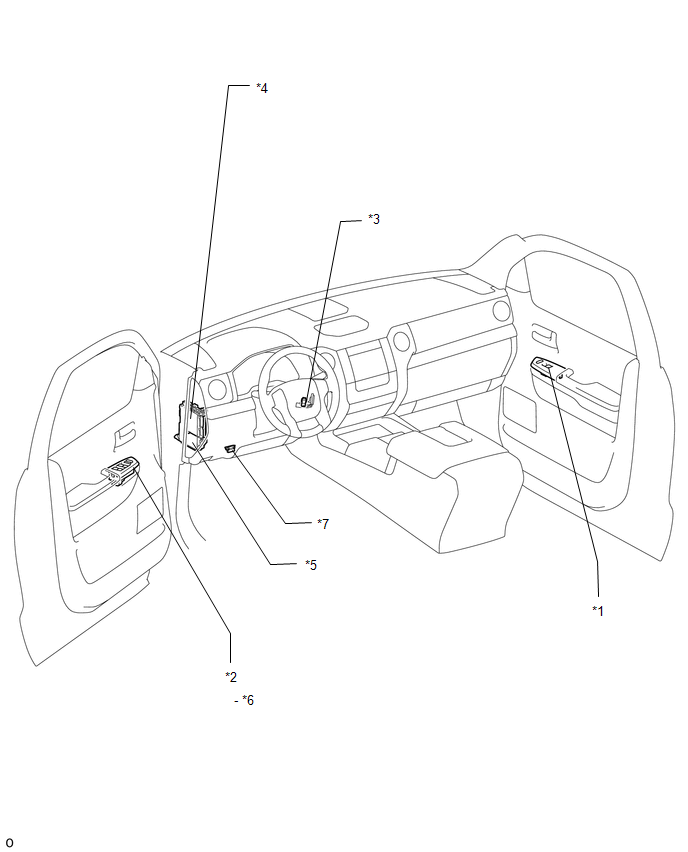

ILLUSTRATION

*1

DOOR CONTROL SWITCH ASSEMBLY RH

*2

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

*3

UNLOCK WARNING SWITCH ASSEMBLY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

  • - ECU-DCC NO. 2 FUSE
  • - ECU-IG1 NO. 4 FUSE
  • - ECU-ACC FUSE
  • - D/L FUSE
  • - ALL DR LOCK RELAY
  • - D-DR UNLOCK RELAY
  • - L/D DR UNLOCK RELAY

*6

DOOR CONTROL SWITCH ASSEMBLY LH

*7

DLC3

-

-

    Operation Check

    Problem Symptoms Table
