ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

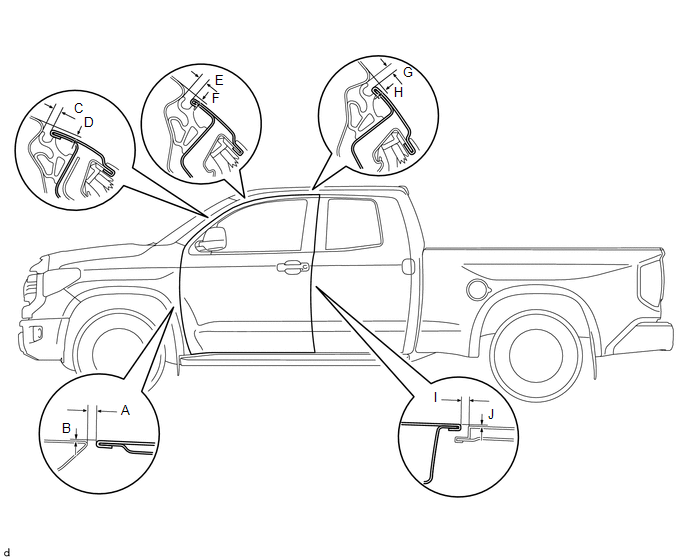

(a) Check that the clearance measurements of areas A to J are within the standard range.

Standard measurement:

Area

Specified Condition

Area

Specified Condition

A

3.7 to 6.7 mm (0.146 to 0.264 in.)

F

2.7 to 5.7 mm (0.106 to 0.224 in.)

B

-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)

G

3.2 to 6.2 mm (0.126 to 0.244 in.)

C

3.5 to 6.5 mm (0.138 to 0.256 in.)

H

2.8 to 5.8 mm (0.110 to 0.229 in.)

D

2.2 to 5.2 mm (0.0866 to 0.205 in.)

I

4.7 to 7.7 mm (0.185 to 0.303 in.)

E

3.2 to 6.2 mm (0.126 to 0.244 in.)

J

-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
