ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT REAR DOOR PANEL SUB-ASSEMBLY LH

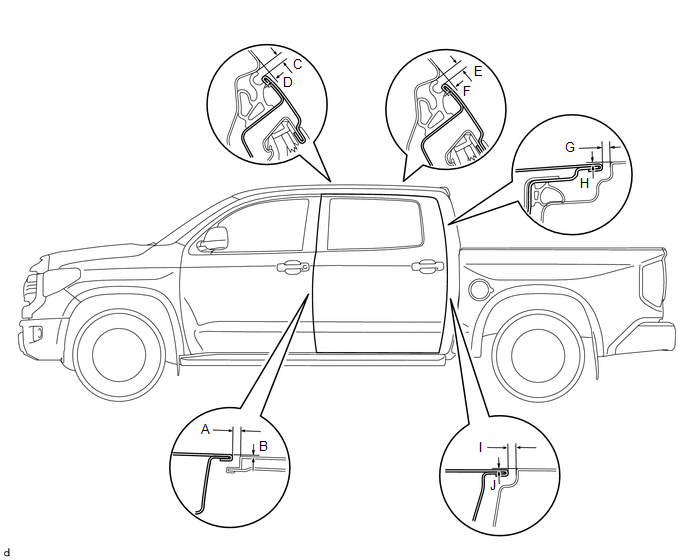

(a) Check that the clearance measurements of areas A to J are within the standard range.

Standard measurement:

Area

Specified Condition

Area

Specified Condition

A

4.7 to 7.7 mm (0.185 to 0.303 in.)

F

0.7 to 3.7 mm (0.0276 to 0.146 in.)

B

-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)

G

3.7 to 6.7 mm (0.146 to 0.264 in.)

C

3.7 to 6.7 mm (0.146 to 0.264 in.)

H

-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)

D

0.8 to 3.8 mm (0.0315 to 0.150 in.)

I

3.7 to 6.7 mm (0.146 to 0.264 in.)

E

3.7 to 6.7 mm (0.146 to 0.264 in.)

J

-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
