Toyota Tundra Service Manual: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click here

PROCEDURE

1. INSTALL LOWER NO. 1 RADIATOR GRILLE

(a) Attach the 17 claws to install the lower No. 1 radiator grille to the front valance panel.

2. INSTALL FRONT BUMPER EXTENSION LH

(a) Install the front bumper extension LH with the 4 nuts.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

3. INSTALL FRONT BUMPER EXTENSION RH

HINT:

Use the same procedure described for the LH side.

4. INSTALL FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY

(a) Install the front license plate bracket sub-assembly with the 2 screws.

5. INSTALL FRONT BUMPER HOLE COVER LH (w/o Fog Light)

(a) Attach the 2 claws to install the front bumper hole cover LH.

6. INSTALL FRONT BUMPER HOLE COVER RH (w/o Fog Light)

HINT:

Use the same procedure described for the LH side.

7. INSTALL FRONT BUMPER HOLE COVER LH (w/ Fog Light)

(a) for Steel Type Bumper:

(1) Attach the 2 claws to install the front bumper hole cover LH.

(b) for Resin Type Bumper:

(1) Attach the 2 claws to install the front bumper hole cover LH.

(2) Install the outside moulding retainer.

*A

for Type A

*B

for Type B

8. INSTALL FRONT BUMPER HOLE COVER RH (w/ Fog Light)

HINT:

Use the same procedure described for the LH side.

9. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET

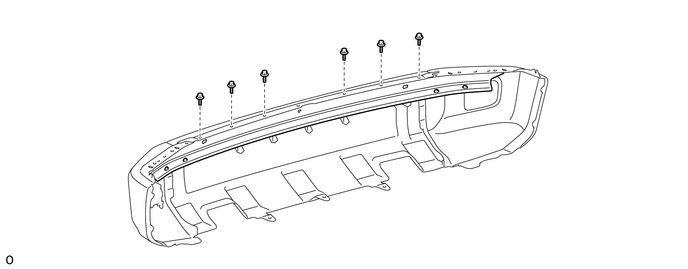

(a) Install the front bumper extension mounting bracket with the 6 bolts.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

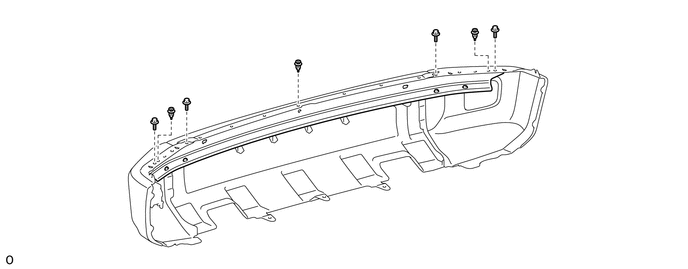

(b) Install the 4 bots and 3 clips.

10. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

(a) for Steel Type Bumper:

Click here

(b) for Resin Type Bumper:

Click here

11. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

Click here

12. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

(a) for Halogen Fog Light:

Click here

(b) for LED Fog Light:

Click here

13. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

HINT:

Use the same procedure described for the LH side.

    Installation

    Removal
