REMOVAL

PROCEDURE

1. REMOVE RADIATOR SIDE GRILLE LH

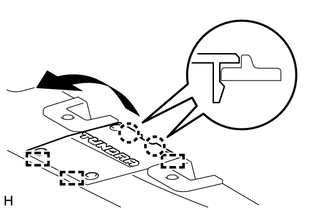

(a) Detach the 2 claws and 3 guides as shown in the illustration to remove the radiator side grille LH.

2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

(a) w/ Toyota Safety Sense P:

(1) Disconnect the millimeter wave radar sensor connector.

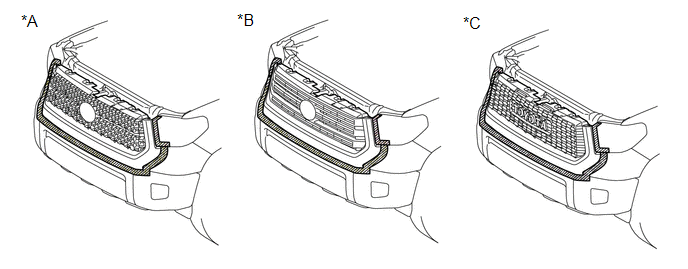

(b) Put protective tape around the radiator grille sub-assembly.

*A

for Type A

*B

for Type B

*C

for Type C

-

-

Protective Tape

-

-

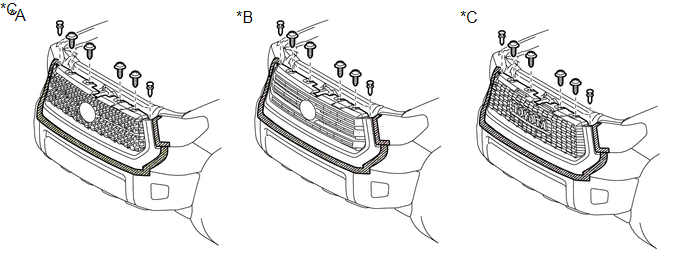

(c) Remove the 4 screws and 2 clips.

*A

for Type A

*B

for Type B

*C

for Type C

-

-

Protective Tape

-

-

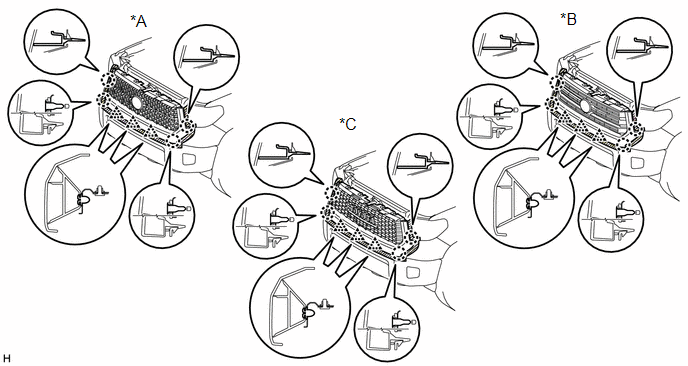

(d) Detach the 4 claws and 3 clips and remove the radiator grille sub-assembly.

*A

for Type A

*B

for Type B

*C

for Type C

-

-

Protective Tape

-

-
    Reassembly
