Toyota Tundra Service Manual: Removal

Toyota Tundra Service Manual / Vehicle Interior / Lighting / Fog Light Assembly(for Halogen Fog Light) / Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

(See page )

2. REMOVE FOG LIGHT ASSEMBLY LH

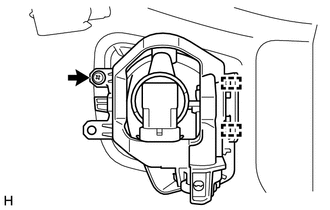

(a) Remove the screw.

(b) Detach the 2 guides to remove the fog light assembly LH.

Reassembly
