REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

2. REMOVE FRONT END PANEL LH

3. REMOVE HEADLIGHT ASSEMBLY LH

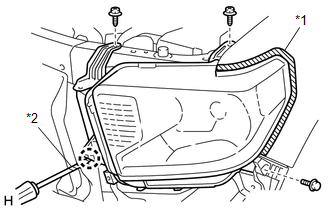

(a) Put protective tape around the headlight assembly LH.

Text in Illustration

*1

Protective Tape

(b) Remove the 2 screws and bolt.

(c) Using a screwdriver, detach the claw.

HINT:

Tape the screwdriver tip before use.

Text in Illustration

*2

Tape

(d) Disconnect each connector, detach the clamp and remove the headlight assembly LH.
