Toyota Tundra Service Manual: Floor Speaker(for Crewmax)

Components

COMPONENTS

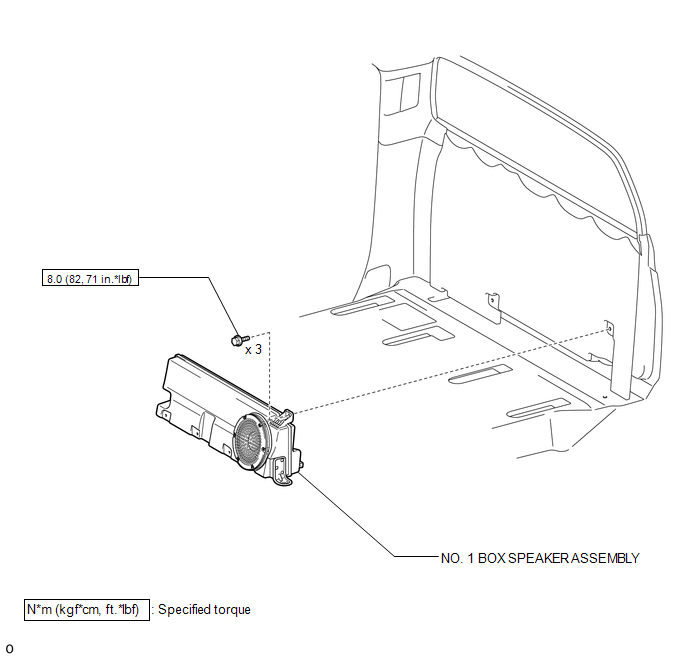

ILLUSTRATION

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 BOX SPEAKER ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Always	1.6 to 2.4 Ω

If the result is not as specified, replace the No. 1 box speaker assembly.

Text in Illustration

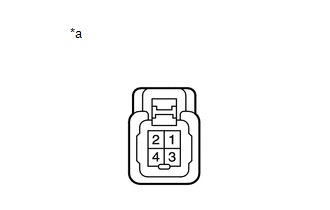

*a	Component without harness connected (No. 1 Box Speaker Assembly)

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 BOX SPEAKER ASSEMBLY

(a) Connect the connector.

(b) Install the No. 1 box speaker assembly with the 3 bolts.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

HINT:

Tighten the bolts in the order shown in the illustration.

2. INSTALL REAR SEAT ASSEMBLY RH

(See page )

3. INSTALL REAR SEAT ASSEMBLY LH

(See page )

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR SEAT ASSEMBLY LH

(See page )

2. REMOVE REAR SEAT ASSEMBLY RH

(See page )

3. REMOVE NO. 1 BOX SPEAKER ASSEMBLY

(a) Remove the 3 bolts.

(b) Disconnect the connector and remove the No. 1 box speaker assembly.
