Toyota Tundra Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL REAR NO. 2 SPEAKER ASSEMBLY

(a) Attach the 3 claws to install the rear No. 2 speaker assembly to the rear door trim board sub-assembly.

2. INSTALL REAR NO. 1 SPEAKER ASSEMBLY

(a) Connect the connector.

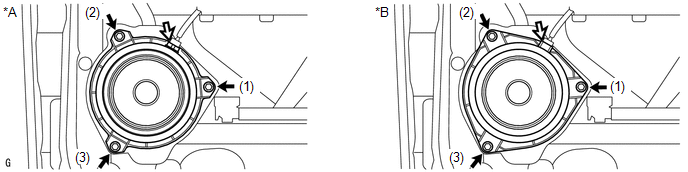

Text in Illustration

*A

for Standard

*B

for 12 Speakers

(b) Install the rear No. 1 speaker assembly with the 3 screws.

NOTICE:

Do not touch the cone part of the speaker.

HINT:

Install the screws in the order shown in the illustration.

3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

4. INSTALL REAR DOOR ARMREST COVER LH

5. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH

6. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH

7. INSTALL REAR DOOR FRAME GARNISH LH
