Toyota Tundra Owners Manual: Front seats

Adjustment procedure (separated type seats)

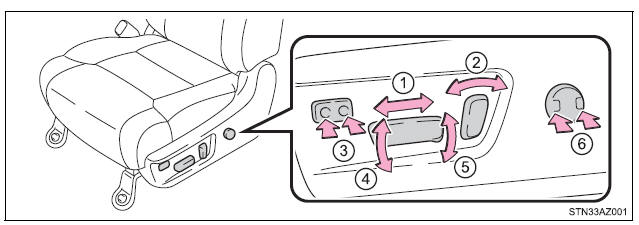

■ Driver's seat

Adjusting the seats

  1. Seat position adjustment switch
  2. Seatback angle adjustment switch
  3. Seat cushion length adjustment switch (if equipped)
  4. Seat cushion (front) angle adjustment switch
  5. Seat vertical height adjustment switch
  6. Seat lumbar support adjustment switch

■ Passenger's seat

Manual seat

Adjusting the seats

  1. Seat position adjustment lever
  2. Seatback angle adjustment lever

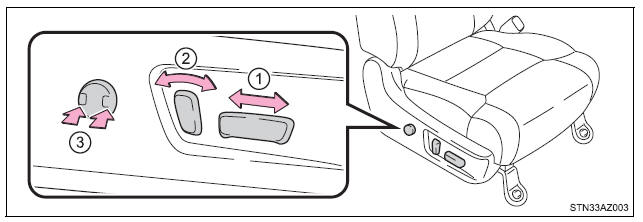

Power seat

Adjusting the seats

  1. Seat position adjustment switch
  2. Seatback angle adjustment switch
  3. Seat lumbar support adjustment switch

Adjustment procedure (bench type seats)

Adjusting the seats

  1. Seat position adjustment levers
  2. Seatback angle adjustment levers
  3. Center seat seatback angle adjustment lever

■Power easy access system (vehicles with driving position memory) The driver's seat and steering wheel move in accordance with engine switch position and the driver's seat belt condition.

WARNING

■When adjusting the seat position

  • Take care when adjusting the seat position to ensure that other passengers are not injured by the moving seat.
  • Do not put your hands under the seat or near the moving parts to avoid injury.

    Fingers or hands may become jammed in the seat mechanism.

■Seat adjustment

  • To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.

    If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

    Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

  • Manual seat type only: After adjusting the seat, make sure that the seat is locked in position.

■When adjusting the seat positions Make sure to leave enough space around the feet so they do not get stuck.

    Adjusting the seats

    Rear seats
