Toyota Tundra Service Manual: Stereo Component Amplifier

Components

COMPONENTS

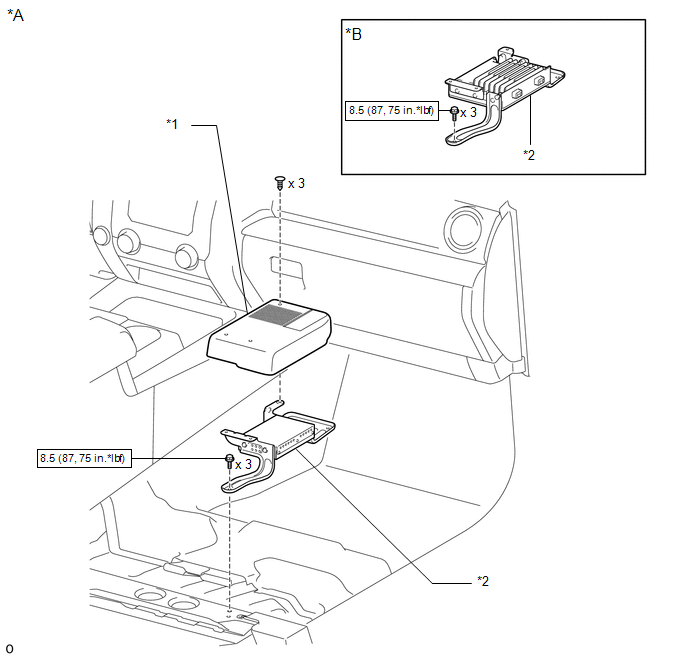

ILLUSTRATION

*A

except 12 Speakers

*B

for 12 Speakers

*1

AUDIO AMPLIFIER COVER

*2

STEREO COMPONENT AMPLIFIER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

*A

for 12 Speakers

*B

except 12 Speakers

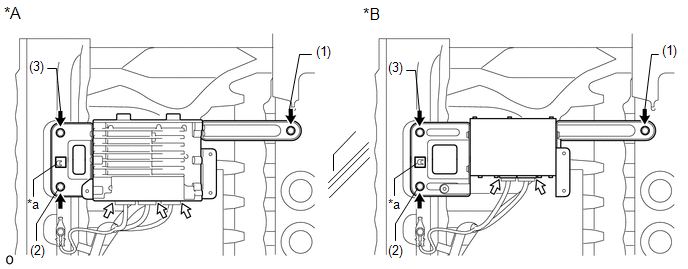

*a

Guide

-

-

(a) Attach the guide to install the stereo component amplifier assembly.

(b) Install the 3 bolts.

Torque:

8.5 N·m {87 kgf·cm, 75 in·lbf}

HINT:

Tighten the bolts in the order shown in the illustration.

(c) for 12 Speakers:

Connect the 3 connectors.

(d) except 12 Speakers:

Connect the 2 connectors.

2. INSTALL AUDIO AMPLIFIER COVER

(a) Attach the 3 clips to install the audio amplifier cover.

3. INSTALL FRONT SEAT ASSEMBLY RH

(a) for Manual Seat:

Click here

(b) for Power Seat:

Click here

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

Removal

REMOVAL

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

3. REMOVE FRONT SEAT ASSEMBLY RH

(a) for Manual Seat:

Click here

(b) for Power Seat:

Click here

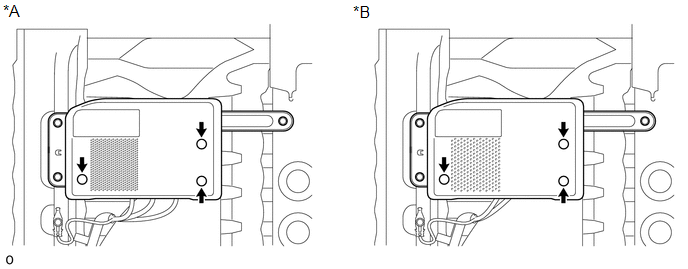

4. REMOVE AUDIO AMPLIFIER COVER

(a) Detach the 3 clips and remove the audio amplifier cover.

*A

for 12 Speakers

*B

except 12 Speakers

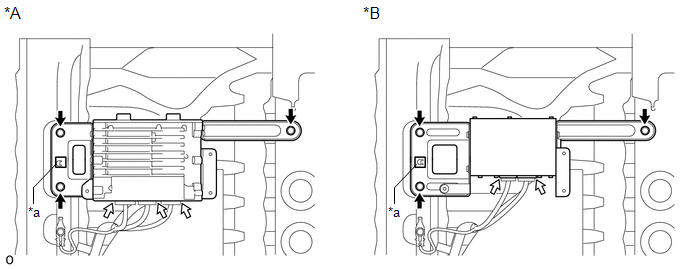

5. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

*A

for 12 Speakers

*B

except 12 Speakers

*a

Guide

-

-

(a) for 12 Speakers:

Disconnect the 3 connectors.

(b) except 12 Speakers:

Disconnect the 2 connectors.

(c) Remove the 3 bolts.

(d) Detach the guide and stereo component amplifier assembly.
