Toyota Tundra Service Manual: Rear Cross Traffic Alert Buzzer(for Crewmax)

Toyota Tundra Service Manual / Audio, Visual, Telematics / Park Assist / Monitoring / Rear Cross Traffic Alert Buzzer(for Crewmax)

Components

COMPONENTS

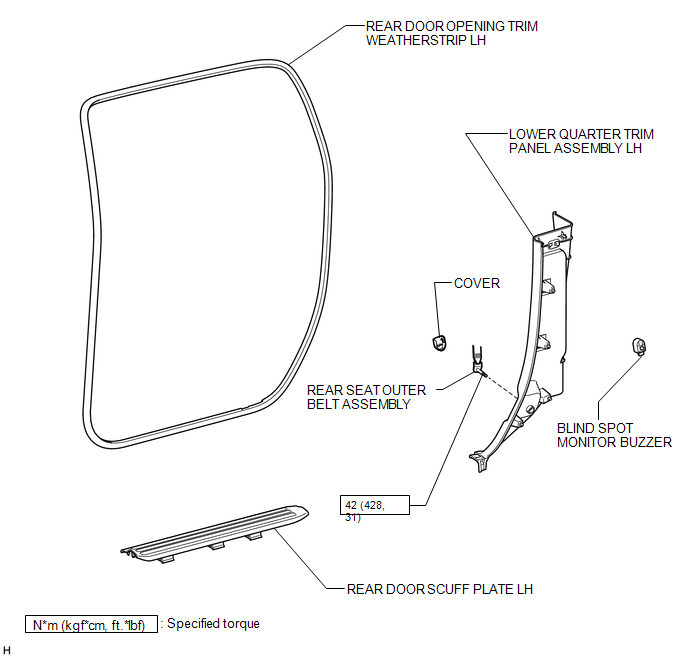

ILLUSTRATION

Installation

INSTALLATION

PROCEDURE

1. INSTALL BLIND SPOT MONITOR BUZZER

(a) Attach the clamp to install the blind spot monitor buzzer.

(b) Connect the connector.

2. INSTALL LOWER QUARTER TRIM PANEL ASSEMBLY LH

3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

4. INSTALL REAR DOOR SCUFF PLATE LH

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR DOOR SCUFF PLATE LH

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

3. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY LH

4. REMOVE BLIND SPOT MONITOR BUZZER

(a) Disconnect the connector.

(b) Detach the clamp and remove the blind spot monitor buzzer.
