INSTALLATION

PROCEDURE

1. INSTALL NO. 1 ULTRASONIC SENSOR (for Steel Type Bumper)

(a) Install the No. 1 ultrasonic sensor as shown in the illustration.

NOTICE:

Do not damage the bumper with the protrusion when installing the No. 1 ultrasonic sensor.

2. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (for Steel Type Bumper)

(a) Install the No. 1 ultrasonic sensor retainer as shown in the illustration.

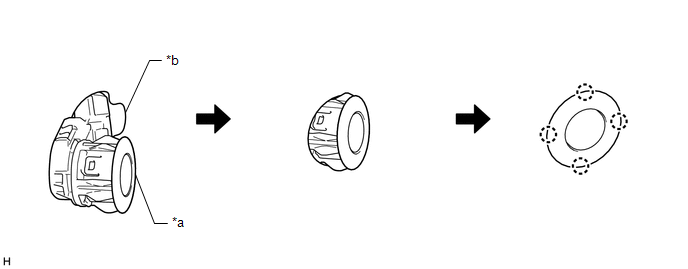

3. INSTALL NO. 1 ULTRASONIC SENSOR (for Resin Type Bumper)

(a) Attach the 4 claws to install the No. 1 ultrasonic sensor as shown in the illustration.

Text in Illustration

*a

No. 1 ultrasonic sensor direction

*b

Keyhole direction

NOTICE:

  • No. 1 ultrasonic sensor direction is the same as the keyhole direction.
  • Do not damage the bumper with the protrusion when installing the No. 1 ultrasonic sensor.

4. INSTALL FRONT BUMPER COVER

Click here

5. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

Click here

6. ADJUST FOG LIGHT AIMING

(a) for Halogen Fog Light:

Click here

(b) for LED Fog Light:

Click here
