Toyota Tundra Service Manual: Removal

Toyota Tundra Service Manual / Audio, Visual, Telematics / Park Assist / Monitoring / Ultrasonic Sensor(for Front Side) / Removal

REMOVAL

PROCEDURE

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

Click here

2. REMOVE FRONT BUMPER COVER

Click here

3. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (for Steel Type Bumper)

(a) Remove the No. 1 ultrasonic sensor retainer as shown in the illustration.

HINT:

The illustration shows the No. 1 ultrasonic sensor retainer for the LH. The horizontal orientation of the No. 1 ultrasonic sensor retainer for the RH is opposite that of the image shown in the illustration.

4. REMOVE NO. 1 ULTRASONIC SENSOR (for Steel Type Bumper)

(a) Remove the No. 1 ultrasonic sensor as shown in the illustration.

HINT:

The illustration shows the No. 1 ultrasonic sensor for the LH. The horizontal orientation of the No. 1 ultrasonic sensor for the RH is opposite that of the image shown in the illustration.

5. REMOVE NO. 1 ULTRASONIC SENSOR (for Resin Type Bumper)

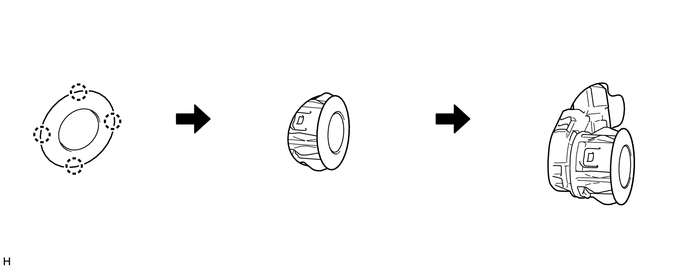

(a) Detach the 4 claws and remove the No. 1 ultrasonic sensor as shown in the illustration.

HINT:

The illustration shows the No. 1 ultrasonic sensor for the RH. The horizontal orientation of the No. 1 ultrasonic sensor for the LH is opposite that of the image shown in the illustration.

Installation

Ultrasonic Sensor(for Rear Side)
