Toyota Tundra Service Manual: Rear Brake Flexible Hose

Toyota Tundra Service Manual / Brake / Brake / Rear Brake Flexible Hose

Components

COMPONENTS

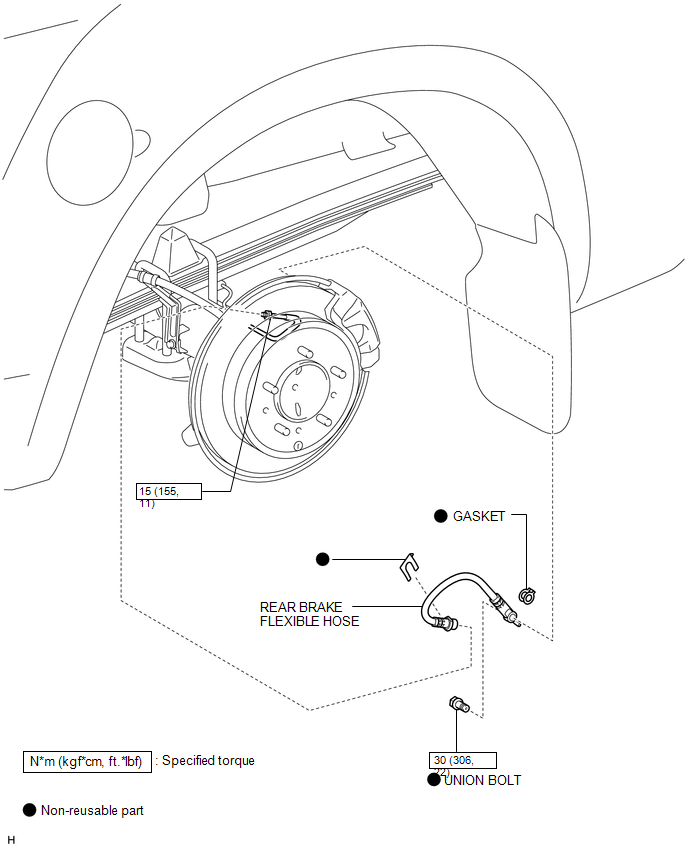

ILLUSTRATION

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. INSTALL REAR BRAKE FLEXIBLE HOSE

(a) Install the flexible hose and a new gasket to the disc brake cylinder with the new union bolt.

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

HINT:

Install the flexible hose lock securely in the lock hole in the cylinder.

(b) Set the flexible hose to the connecting point with the brake tube, and then attach a new clip.

(c) Using a union nut wrench, connect the flexible hose to the brake tube while holding the flexible hose with a wrench.

Torque:

15 N·m {155 kgf·cm, 11 ft·lbf}

NOTICE:

  • Do not bend or damage the brake tube.
  • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.
  • Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench (See page ).

2. BLEED BRAKE LINE

3. INSTALL REAR WHEEL

Torque:

for Aluminum Wheel :

131 N·m {1336 kgf·cm, 97 ft·lbf}

for Steel Wheel :

209 N·m {2131 kgf·cm, 154 ft·lbf}

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL

2. DRAIN BRAKE FLUID

NOTICE:

Wash off brake fluid immediately if it comes in contact with any painted surface.

3. REMOVE REAR BRAKE FLEXIBLE HOSE

(a) Disconnect the brake tube from the flexible hose with a union nut wrench while holding the flexible hose with a wrench.

NOTICE:

  • Do not bend or damage the brake tube.
  • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.

(b) Remove the clip.

(c) Remove the union bolt and gasket, and then remove the flexible hose from the disc brake cylinder.
    Removal

    Rear Brake
