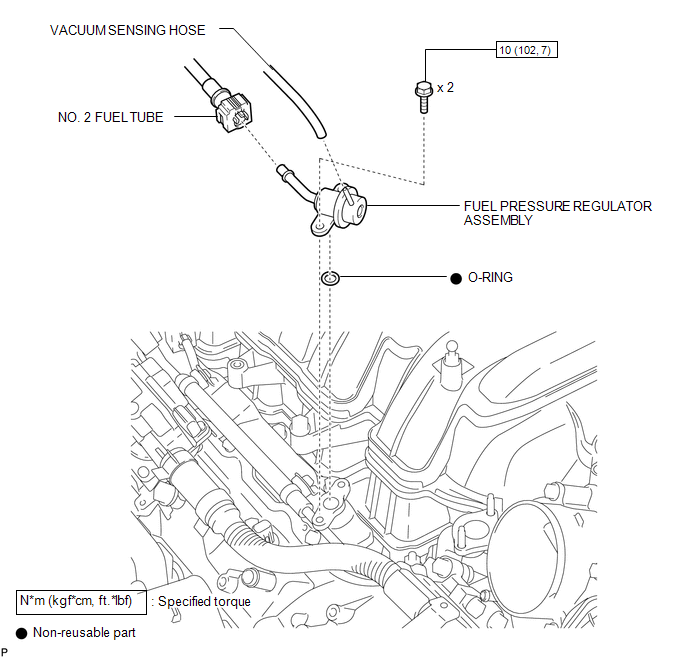

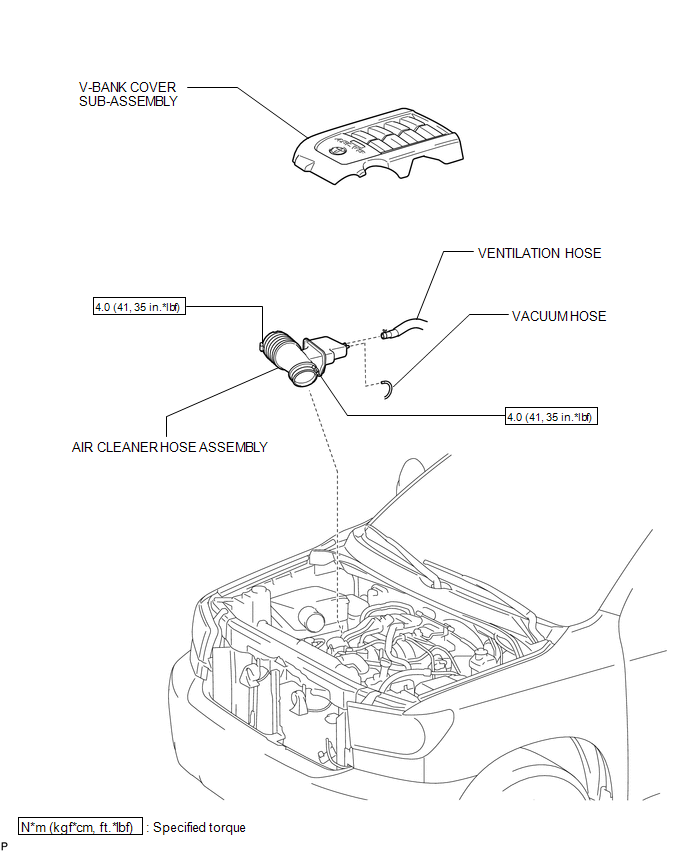

Components COMPONENTS ILLUSTRATION ILLUSTRATION Installation INSTALLATION PROCEDURE 1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY (a) Apply a light coat of gasoline or spindle oil to a new O-ring, and install it to the pressure regulator. NOTICE:
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL 3. INSTALL AIR CLEANER HOSE ASSEMBLY
4. INSTALL V-BANK COVER
5. CHECK FOR FUEL LEAK
Removal REMOVAL PROCEDURE 1. PRECAUTION NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See page ). 2. DISCHARGE FUEL SYSTEM PRESSURE
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 4. REMOVE V-BANK COVER
5. REMOVE AIR CLEANER HOSE ASSEMBLY
6. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
(d) Remove the O-ring from the pressure regulator. |
