Toyota Tundra Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.
  • A bolt without a torque specification is shown in the standard bolt chart (see page ).

PROCEDURE

1. INSTALL REAR SPRING SHACKLE BUSH

(a) Install the 2 shackle bushes to the frame.

2. INSTALL TUBE

(a) Install the tube to the bush.

3. TEMPORARILY INSTALL REAR SPRING ASSEMBLY LH

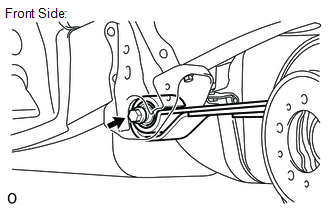

(a) Temporarily install the spring with the No. 2 spring shackle plate, shackle outer plate, 2 washers and 2 nuts to the rear side.

(b) Temporarily install the spring with the bolt, washer and nut to the front side.

4. INSTALL REAR SPRING BUMPER SUB-ASSEMBLY

(a) Install the spring bumper.

NOTICE:

Align the leaf spring center bolt and nut with the installation hole of the rear axle housing and spring bumper so that they are not loose.

5. TEMPORARILY INSTALL REAR SPRING U BOLT

(a) Temporarily install the spring seat and 2 U bolts with the 4 washers and 4 nuts.

NOTICE:

  • Tighten the nuts in the order shown in the illustration.
  • Install the U bolts so that the lengths of the 4 ends under the spring seat are the same.

6. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Connect the parking brake cable to the vehicle with the 3 bolts.

Torque:

for Bolt A :

19 N·m {194 kgf·cm, 14 ft·lbf}

for Bolt B :

14 N·m {138 kgf·cm, 10 ft·lbf}

7. STABILIZE SUSPENSION

8. TIGHTEN REAR SPRING ASSEMBLY LH

(a) Tighten the 3 nuts.

Torque:

105 N·m {1071 kgf·cm, 77 ft·lbf}

9. TIGHTEN REAR SPRING U BOLT

(a) Tighten the 4 nuts.

Torque:

100 N·m {1020 kgf·cm, 74 ft·lbf}

10. INSTALL REAR WHEEL

Torque:

for Aluminum Wheel :

131 N·m {1336 kgf·cm, 97 ft·lbf}

for Steel Wheel :

209 N·m {2131 kgf·cm, 154 ft·lbf}

11. INSTALL SPARE TIRE

12. REMOVE SAFETY STANDS

    Disassembly

    Reassembly
