Toyota Tundra Service Manual: IG Power Source Circuit

DESCRIPTION

When the ignition switch is turned to on, the IG power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.

The multiplex tilt and telescopic ECU also receives ignition switch signals via this circuit.

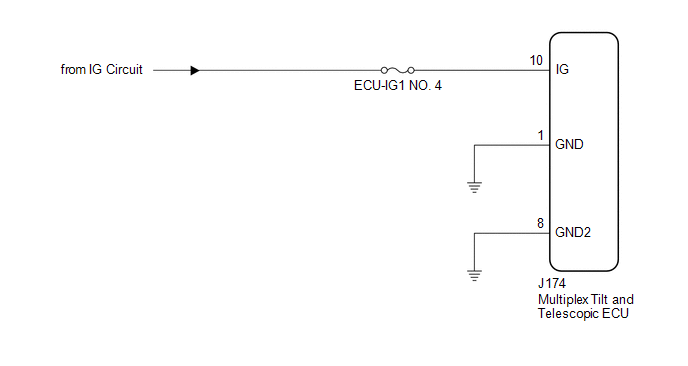

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.	CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the J174 multiplex tilt and telescopic ECU connector.

*a	Front view of wire harness connector (to Multiplex Tilt and Telescopic ECU)

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
J174-10 (IG) - Body ground	Ignition switch ON	11 to 14 V

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.	CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Disconnect the J174 multiplex tilt and telescopic ECU connector.

*a	Front view of wire harness connector (to Multiplex Tilt and Telescopic ECU)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
J174-1 (GND) - Body ground	Always	Below 1 Ω
J174-8 (GND2) - Body ground	Always	Below 1 Ω

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

REPAIR OR REPLACE HARNESS OR CONNECTOR
