COMPONENTS

ILLUSTRATION

*A

for Type A

*B

for Type B

*C

for Type C

-

-

*1

FRONT END PANEL LH

*2

FRONT END PANEL RH

*3

FRONT FENDER MAIN SEAL LH

*4

FRONT FENDER MAIN SEAL RH

*5

RADIATOR GRILLE SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for Steel Type Bumper

-

-

*1

FRONT BUMPER COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for Resin Type Bumper

-

-

*1

FRONT BUMPER COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

FRONT BUMPER ARM LH

*2

FRONT BUMPER ARM RH

*3

FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY LH

*4

FRONT BUMPER NO. 2 EXTENSION SUB-ASSEMBLY RH

*5

FRONT BUMPER REINFORCEMENT

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

FRONT BUMPER CENTER UPPER RETAINER

*2

FRONT BUMPER END RETAINER LH

*3

FRONT BUMPER END RETAINER RH

*4

FRONT BUMPER SIDE SUPPORT LH

*5

FRONT BUMPER SIDE SUPPORT RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for Halogen Fog Light

*B

for Steel Type Bumper

*C

for Resin Type Bumper

-

-

*1

FOG LIGHT ASSEMBLY LH

*2

FOG LIGHT ASSEMBLY RH

ILLUSTRATION

*A

for LED Fog Light

*B

for Steel Type Bumper

*C

for Resin Type Bumper

*D

for Type A

*E

for Type B

-

-

*1

FOG LIGHT ASSEMBLY LH

*2

FOG LIGHT ASSEMBLY RH

ILLUSTRATION

*A

w/ Intuitive Parking Assist System

*B

for Steel Type Bumper

*C

for Resin Type Bumper

-

-

*1

NO. 1 ULTRASONIC SENSOR

*2

NO. 1 ULTRASONIC SENSOR RETAINER

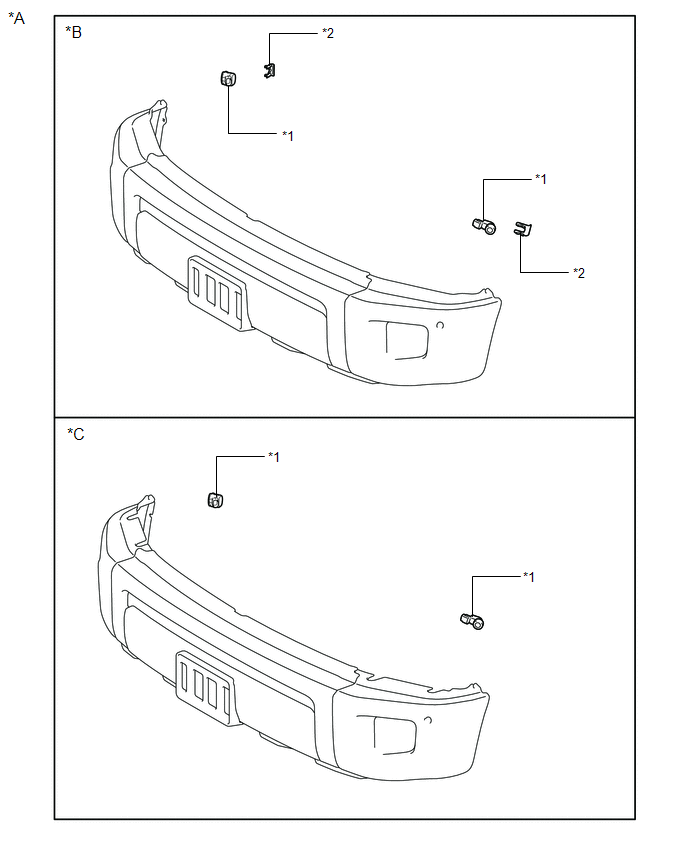

ILLUSTRATION

*A

for Steel Type Bumper

*B

w/o Fog Light

*C

w/ Fog Light

-

-

*1

FRONT BUMPER EXTENSION LH

*2

FRONT BUMPER EXTENSION MOUNTING BRACKET

*3

FRONT BUMPER EXTENSION RH

*4

FRONT BUMPER HOLE COVER LH

*5

FRONT BUMPER HOLE COVER RH

*6

FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY

*7

LOWER NO. 1 RADIATOR GRILLE

*8

FRONT VALANCE PANEL

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for Resin Type Bumper

*B

w/o Fog Light

*C

w/ Fog Light

*D

for Type A

*E

for Type B

-

-

*1

FRONT BUMPER EXTENSION LH

*2

FRONT BUMPER EXTENSION MOUNTING BRACKET

*3

FRONT BUMPER EXTENSION RH

*4

FRONT BUMPER HOLE COVER LH

*5

FRONT BUMPER HOLE COVER RH

*6

FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY

*7

LOWER NO. 1 RADIATOR GRILLE

*8

FRONT VALANCE PANEL

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Front Bumper

    Disassembly
