Toyota Tundra Service Manual: Components

Toyota Tundra Service Manual / Vehicle Interior / Exterior / Rear Bumper(for Resin Type Bumper) / Components

COMPONENTS

ILLUSTRATION

*1	LICENSE PLATE LIGHT ASSEMBLY LH	*2	LICENSE PLATE LIGHT ASSEMBLY RH
*3	REAR BUMPER EXTENSION INSERT LH	*4	REAR BUMPER EXTENSION INSERT RH
*5	REAR BUMPER PAD SUB-ASSEMBLY LH	*6	REAR BUMPER PLATE LH
*7	REAR BUMPER PLATE RH	-	-
●	Non-reusable part	-	-

ILLUSTRATION

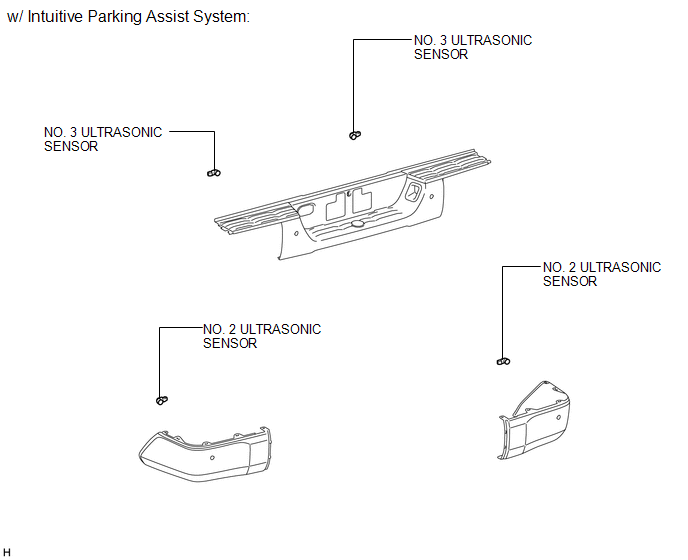

*A	w/ Intuitive Parking Assist System	*B	w/o Intuitive Parking Assist System
*C	w/ Blind Spot Monitor System	*D	w/o Blind Spot Monitor System
*1	NO. 2 FRAME WIRE	-	-

ILLUSTRATION

*A	w/ Towing Package	*B	w/o Towing Package
*1	REAR BUMPER BAR CORNER REINFORCEMENT LH	*2	REAR BUMPER BAR CORNER REINFORCEMENT RH
*3	REAR BUMPER PLATE	*4	REAR BUMPER SIDE STAY LH
*5	REAR BUMPER SIDE STAY RH	*6	REAR BUMPER UPPER COVER LH
*7	REAR BUMPER UPPER COVER RH	*8	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

*A	w/ Blind Spot Monitor System	-	-
*1	BLIND SPOT MONITOR SENSOR LH	*2	BLIND SPOT MONITOR SENSOR RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

Rear Bumper(for Resin Type Bumper)

Disassembly
