Components

COMPONENTS

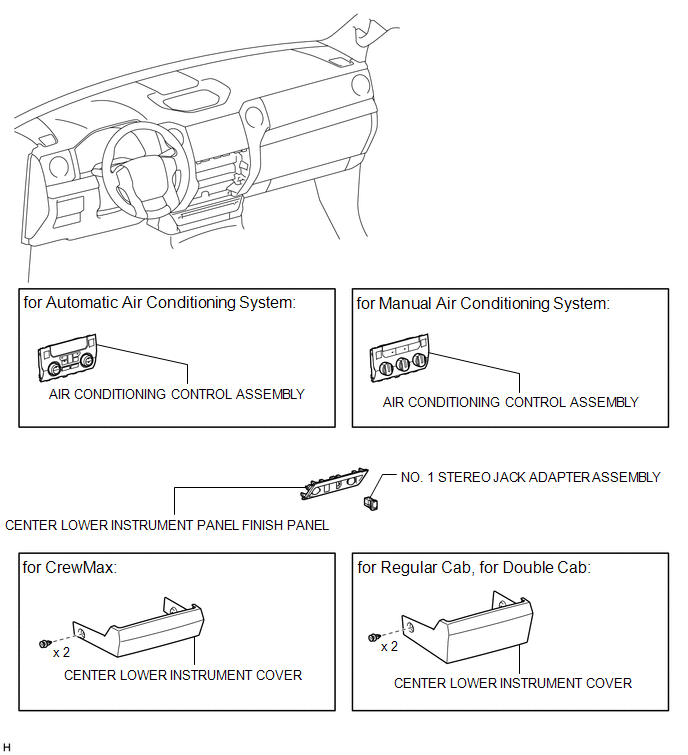

ILLUSTRATION

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

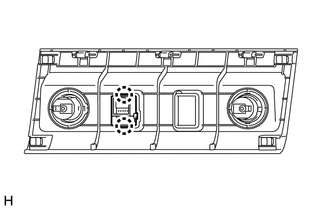

(a) Attach the 2 claws to install the No. 1 stereo jack adapter assembly.

2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

3. INSTALL CENTER LOWER INSTRUMENT COVER

Removal

REMOVAL

PROCEDURE

1. REMOVE CENTER LOWER INSTRUMENT COVER

2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

3. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

(a) Detach the 2 claws and remove the No. 1 stereo jack adapter assembly.
