Toyota Tundra Service Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL

2. DRAIN BRAKE FLUID

NOTICE:

Wash brake fluid off immediately if it is spilled on any painted surface.

3. DISCONNECT REAR FLEXIBLE HOSE LH

(a) Remove the union bolt and gasket, and then disconnect the flexible hose from the rear disc brake cylinder. Use a container to catch brake fluid as it drains out.

4. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY LH

(a) Remove the 2 slide pins.

(b) Remove the cylinder from the rear disc brake cylinder mounting.

5. REMOVE REAR DISC BRAKE PAD

(a) Remove the 2 brake pads from the rear disc brake cylinder mounting.

NOTICE:

  • When removing the pads, make sure that the disc brake pad support plates remain securely attached to the cylinder mounting. The pad support plates are attached to the cylinder mounting with double-sided tape.
  • If a pad support plate is not securely attached to the cylinder mounting, replace it with a new one.

6. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM

(a) Remove the anti-squeal shim from each disc brake pad.

7. REMOVE PAD WEAR INDICATOR PLATE

(a) Remove the pad wear indicator plate from the inner disc brake pad.

8. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE

NOTICE:

  • The pad support plates can be reused if they are securely attached to the cylinder mounting. Therefore, do not remove the pad support plates from the cylinder mounting. The pad support plates are attached to the cylinder mounting with double-sided tape.
  • If it is necessary to remove the pad support plates, replace them with new ones.

(a) Remove the 4 pad support plates from the rear disc brake cylinder mounting.

9. REMOVE REAR DISC BRAKE CYLINDER MOUNTING LH

(a) Remove the 2 bolts and rear disc brake cylinder mounting.

NOTICE:

If the pad support plates are removed during maintenance of parts, replace them with new ones.

(b) Remove the rear disc brake bush dust boot from the rear disc brake cylinder mounting.

10. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG

11. REMOVE REAR DISC

(a) Put matchmarks on the rear disc and axle hub if planning to reuse the disc.

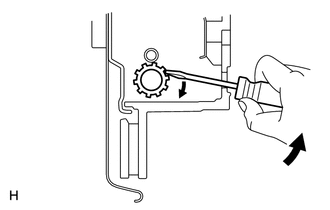

(b) Turn the shoe adjuster until the disc turns freely, and then remove the disc.
