REMOVAL

PROCEDURE

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

(See page )

2. REMOVE FAN SHROUD

(See page )

3. DISCONNECT OUTLET RADIATOR HOSE

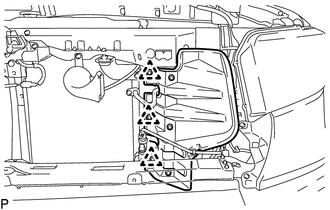

4. DISCONNECT RADIATOR SIDE DEFLECTOR RH

(a) Using a clip remover, remove the 3 clips and disconnect the radiator side deflector RH.

5. DISCONNECT RADIATOR SIDE DEFLECTOR LH

(a) Using a clip remover, remove the 3 clips and disconnect the radiator side deflector LH.

6. REMOVE RADIATOR ASSEMBLY

(a) Remove the 4 bolts and radiator assembly.

(b) Slide the clamp and remove the outlet radiator hose from the radiator assembly.

(c) Remove the radiator drain cock plug from the radiator assembly.

(d) Remove the O-ring from the radiator drain cock plug.
