INSPECTION

PROCEDURE

1. INSPECT EGR VALVE ASSEMBLY

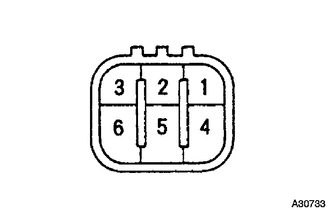

(a) Check the resistance of the EGR valve.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

18 to 22 Ω

2 - 3

4 - 5

5 - 6

If the result is not as specified, replace the EGR valve.
    Components

    Installation
