REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. REMOVE FRONT WHEEL

2. REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING LH

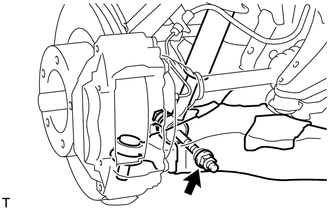

(a) Remove the nut and bolt from the shock absorber lower side.

NOTICE:

To prevent the shock absorber with coil spring from falling, leave the bolt inserted.

(b) Remove the 4 nuts.

(c) Remove the bolt (lower side) and shock absorber with coil spring.

    Reassembly
