Toyota Tundra Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 CABLE SUPPORT BRACKET

(a) Install the No. 2 cable support bracket with the 2 bolts.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

2. INSTALL PARKING BRAKE INTERMEDIATE LEVER SUB-ASSEMBLY

(a) Apply MP grease to the moving parts of the parking brake intermediate lever sub-assembly.

(b) Apply MP grease to the areas where the cables contact the parking brake intermediate lever sub-assembly.

(c) Install the parking brake intermediate lever sub-assembly to the parking brake intermediate lever bracket with the clip, washer and pin.

Text in Illustration

*1

Parking Brake Intermediate Lever Bracket

*2

Pin

*3

Clip

*4

Washer

(d) Install the parking brake intermediate lever sub-assembly with parking brake intermediate lever bracket with the 2 bolts.

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

3. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Install the No. 3 parking brake cable assembly to the rear axle carrier with the bolt.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(b) Connect the No. 3 parking brake cable assembly to the parking brake intermediate lever sub-assembly (labeled C) and install the 6 bolts (labeled A and B).

Torque:

for bolt A :

19 N·m {194 kgf·cm, 14 ft·lbf}

for bolt B :

14 N·m {138 kgf·cm, 10 ft·lbf}

NOTICE:

Do not bend and twist the parking brake cable.

4. INSTALL PARKING BRAKE SHOE LEVER LH

5. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

6. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

7. INSTALL PARKING BRAKE SHOE RETURN SPRING LH

8. CHECK PARKING BRAKE INSTALLATION

9. INSTALL REAR DISC LH

10. ADJUST PARKING BRAKE SHOE CLEARANCE

11. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH

12. INSTALL REAR WHEEL LH

13. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

(a) Install the No. 2 parking brake cable assembly to the rear axle carrier with the bolt.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(b) Install the No. 2 parking brake cable clamp with the bolt (labeled A).

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

(c) Connect the No. 2 parking brake cable assembly to the parking brake intermediate lever sub-assembly (labeled B) and install the 6 bolts (labeled C and D).

NOTICE:

Do not bend and twist the parking brake cable.

Torque:

for bolt C :

19 N·m {194 kgf·cm, 14 ft·lbf}

for bolt D :

14 N·m {138 kgf·cm, 10 ft·lbf}

(d) Connect the No. 2 parking brake cable assembly to the 2 No. 2 parking brake clamps (labeled E).

14. INSTALL NO. 2 CABLE RETAINER

(a) Install the No. 2 cable retainer with the bolt.

Torque:

13 N·m {127 kgf·cm, 9 ft·lbf}

15. INSTALL INTERMEDIATE LEVER TENSION SPRING

(a) Install the intermediate lever tension spring.

16. INSTALL PARKING BRAKE SHOE LEVER RH

HINT:

Use the same procedures described for the LH side.

17. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

18. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

19. INSTALL PARKING BRAKE SHOE RETURN SPRING RH

HINT:

Use the same procedures described for the LH side.

20. CHECK PARKING BRAKE INSTALLATION

21. INSTALL REAR DISC RH

HINT:

Use the same procedures described for the LH side.

22. ADJUST PARKING BRAKE SHOE CLEARANCE

23. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

24. INSTALL REAR WHEEL RH

25. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for 3700 mm [12 ft. 1.7 in.] Wheelbase Type)

(a) Install the No. 1 cable support bracket with the 3 bolts (labeled A).

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

(b) Install the No. 1 parking brake cable assembly to the inside of the vehicle with the 2 bolts (labeled B).

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(c) Connect the No. 1 parking brake cable clamp (labeled C) to the No. 1 parking brake cable assembly.

(d) Install the No. 1 parking brake cable clamp with the nut (labeled D).

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(e) Install the No. 1 parking brake cable assembly and cable retainer with the bolt (labeled E).

Torque:

13 N·m {127 kgf·cm, 9 ft·lbf}

(f) Temporarily install the adjustment nut and lock nut (labeled F).

NOTICE:

Do not bend and twist the parking brake cable.

HINT:

The nuts will be tightened to a torque specification in the "ADJUST PARKING BRAKE PEDAL TRAVEL" procedure.

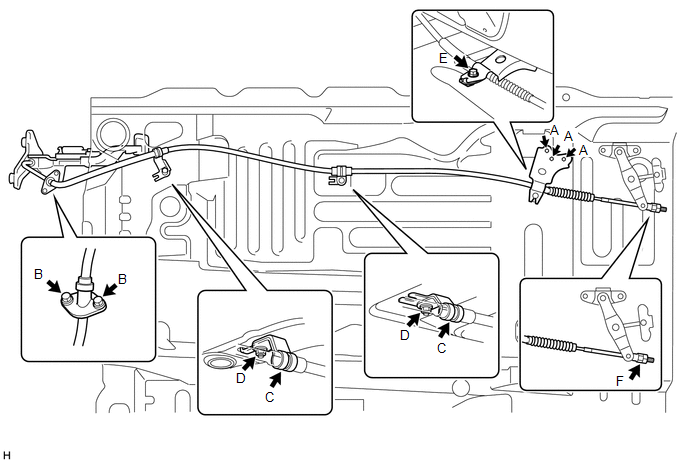

26. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for 4180 mm [13 ft. 8.6 in.] Wheelbase Type)

(a) Install the No. 1 cable support bracket with the 3 bolts (labeled A).

Torque:

19 N·m {194 kgf·cm, 14 ft·lbf}

(b) Install the No. 1 parking brake cable assembly to the inside of the vehicle with the 2 bolts (labeled B).

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(c) Connect the 2 No. 1 parking brake cable clamps (labeled C) to the No. 1 parking brake cable assembly.

(d) Install the 2 No. 1 parking brake cable clamps with the 2 nuts (labeled D).

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(e) Install the No. 1 parking brake cable assembly and cable retainer with the bolt (labeled E).

Torque:

13 N·m {127 kgf·cm, 9 ft·lbf}

(f) Temporarily install the adjustment nut and lock nut (labeled F).

NOTICE:

Do not bend and twist the parking brake cable.

HINT:

The nuts will be tightened to a torque specification in the "ADJUST PARKING BRAKE PEDAL TRAVEL" procedure.

27. INSTALL FRONT NO. 2 EXHAUST PIPE ASSEMBLY

(a) for 1UR-FE:

Install the front No. 2 exhaust pipe (See page ).

(b) for 3UR-FE:

Install the front No. 2 exhaust pipe (See page ).

(c) for 3UR-FBE:

Install the front No. 2 exhaust pipe (See page ).

28. CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

29. SETTLE PARKING BRAKE SHOE AND DISC

30. CHECK PARKING BRAKE PEDAL TRAVEL

31. ADJUST PARKING BRAKE PEDAL TRAVEL

32. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

33. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

34. INSTALL INSTRUMENT SIDE PANEL LH

35. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

36. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light (See page ).

37. INSPECT FOR EXHAUST GAS LEAK

(a) If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.
