Toyota Tundra Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTICE:

Do not touch the internal components of the forward recognition with heater hood sub-assembly or press on the heater when working on the forward recognition with heater hood sub-assembly.

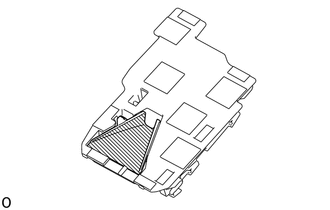

Heater Area

(a) Attach the guide in the direction indicated by the arrow (1) in the illustration.

(b) Attach the claw in the direction indicated by the arrow (2) in the illustration.

NOTICE:

Do not press the heater area.

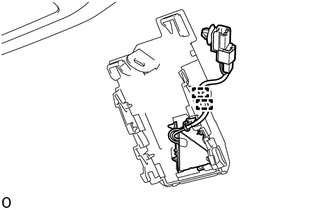

(c) Attach the 2 guides to install the wire harness to the forward recognition bracket.

(d) Attach the connector clamp to install the forward recognition with heater hood sub-assembly.

(e) Connect the connector.

2. INSTALL FORWARD RECOGNITION CAMERA

NOTICE:

  • When replacing the forward recognition camera, replace it with a new one.
  • Do not touch the camera lens. If the camera lens has been touched, do not use the forward recognition camera.
  • If the forward recognition camera has been struck or dropped, replace it with a new one.
  • If the forward recognition camera is not properly installed, forward recognition camera optical axis learning cannot be performed properly. Make sure the forward recognition camera is installed securely.
  • Replace the forward recognition camera if there is any foreign matter on the camera lens.
  • When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the dynamic radar cruise control system, forward recognition camera system, lane departure alert system, pre-collision system may not operate properly due to a difference in the transmissivity or black ceramic border.
  • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
  • If there is any foreign matter on the area of the windshield glass in front of the forward recognition camera, clean the windshield glass before installing the forward recognition camera.

(a) When using a new forward recognition camera:

(1) Remove the cap.

NOTICE:

Do not touch the camera lens after removing the protective cap.

(b) Attach the 4 guides to install the forward recognition camera as shown in the illustration.

NOTICE:

Do not touch the camera lens.

(c) Connect the connector.

3. INSTALL FORWARD RECOGNITION LATCH

NOTICE:

Before installing the forward recognition latch, be sure to check that the forward recognition camera is securely installed.

(a) Attach the 4 guides and 2 claws to install the forward recognition camera as shown in the illustration.

NOTICE:

Check that the forward recognition latch is securely installed.

*a

Make sure that the claw is securely attached.

4. INSTALL NO. 1 FORWARD RECOGNITION COVER

(a) Attach the 2 guides and 2 clips as shown in the illustration to install the No. 1 forward recognition cover.

NOTICE:

When installing, press the cover parallel to the windshield glass surface and install.

5. ADJUST FORWARD RECOGNITION CAMERA

(a) If the forward recognition camera has been replaced or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

Click here
