Toyota Tundra Service Manual: Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

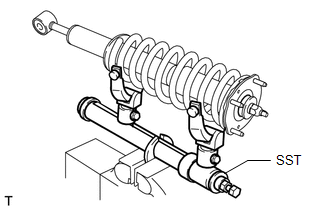

(a) Secure SST in a vise.

SST: 09727-30021

09727-00010

09727-00021

09727-00031

(b) Attach the arm of SST to the diameter of the coil spring.

CAUTION:

  • Make sure that the coil spring is installed so that the distance between the upper and lower hooks of SST is at the maximum.
  • Make sure that the claws of the hooks are securely attached.

(c) Using SST, compress the coil spring.

CAUTION:

  • If the coil spring bends during the compression, immediately stop the compression and reinstall SST.
  • Do not compress the spring until the coil springs contact each other.
  • Do not use an impact wrench.

(d) Remove the front support to front shock absorber nut.

CAUTION:

Do not remove the front support to front shock absorber nut when the coil spring is not free.

2. REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY LH

(a) Remove the suspension support, 2 retainers and 2 cushions from the shock absorber rod.

3. REMOVE FRONT COIL SPRING LH

(a) Remove the coil spring from the shock absorber.

    Components

    Disposal
