Components

COMPONENTS

ILLUSTRATION

ILLUSTRATION

Inspection

INSPECTION

PROCEDURE

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

Tester Connection

Switch Condition

Specified Condition

4 (L) - 3 (E)

Lock

Below 1 Ω

4 (L) - 3 (E)

OFF

10 kΩ or higher

2 (UL) - 3 (E)

2 (UL) - 3 (E)

Unlock

Below 1 Ω

If the result is not as specified, replace the door control switch assembly.

Text in Illustration

*a

Component without harness connected

(Door Control Switch Assembly)

*b

Unlock

*c

Lock

Installation

INSTALLATION

PROCEDURE

1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

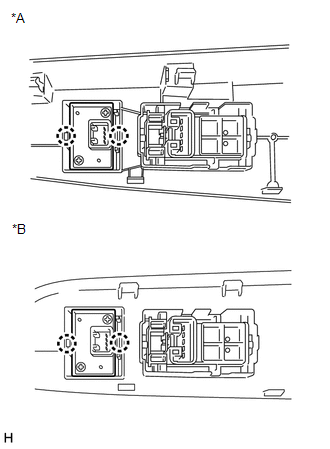

(a) Attach the 2 claws to install the door control switch assembly.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax

2. INSTALL FRONT ARMREST UPPER BASE PANEL RH

(a) Connect each connector.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax

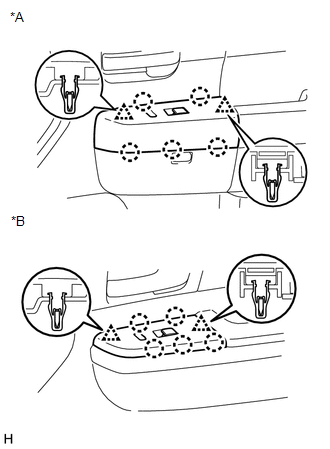

(b) Attach the 2 clips and 5 claws to install the front armrest upper base panel RH.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT ARMREST UPPER BASE PANEL RH

(a) Using a moulding remover, detach the 2 clips and 5 claws, and remove the front armrest upper base panel RH.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax

(b) Disconnect each connector.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax

2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

(a) Detach the 2 claws and remove the door control switch assembly.

Text in Illustration

*A

for Regular Cab

*B

for Double Cab, for CrewMax
