Toyota Tundra Service Manual: Components

COMPONENTS

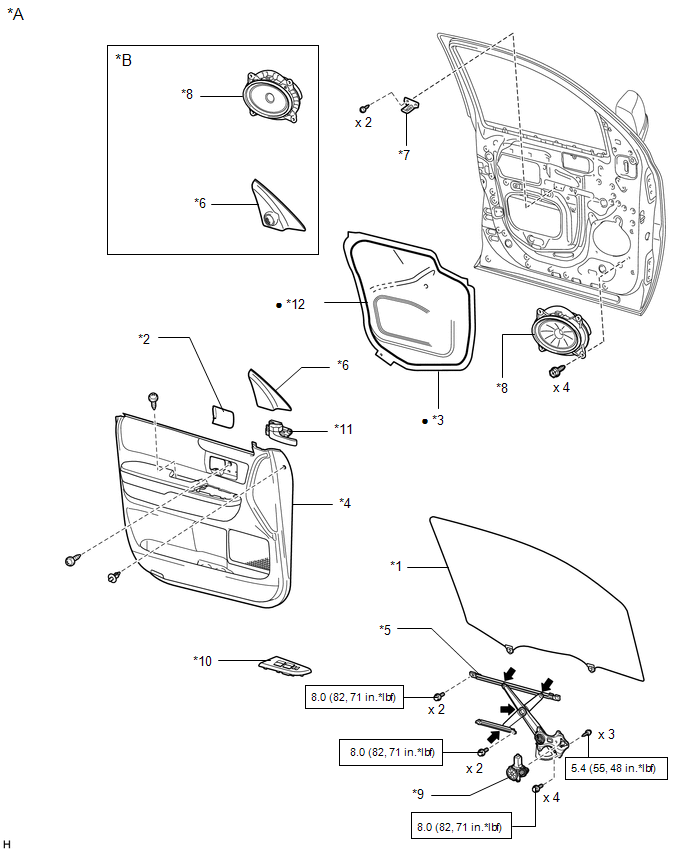

ILLUSTRATION

*A

for Double Cab

*B

for 7 Speakers

*1

FRONT DOOR GLASS SUB-ASSEMBLY LH

*2

FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

*3

FRONT DOOR SERVICE HOLE COVER LH

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

*5

FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

*6

FRONT LOWER DOOR FRAME BRACKET GARNISH LH

*7

FRONT NO. 1 DOOR TRIM BRACKET

*8

FRONT NO. 1 SPEAKER ASSEMBLY

*9

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

*10

FRONT UPPER ARMREST BASE PANEL LH

*11

FRONT DOOR INSIDE HANDLE SUBASSEMBLY LH

*12

BUTYL TAPE

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

ILLUSTRATION

*A

for CrewMax

*B

for 12 Speakers

*1

FRONT DOOR GLASS SUB-ASSEMBLY LH

*2

FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

*3

FRONT DOOR SERVICE HOLE COVER LH

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

*5

FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

*6

FRONT LOWER DOOR FRAME BRACKET GARNISH LH

*7

FRONT NO. 1 DOOR TRIM BRACKET

*8

FRONT NO. 1 SPEAKER ASSEMBLY

*9

FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

*10

FRONT UPPER ARMREST BASE PANEL LH

*11

FRONT DOOR INSIDE HANDLE SUBASSEMBLY LH

*12

BUTYL TAPE

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-
