DESCRIPTION

This DTC is stored when a video or audio signal is interrupted due to battery voltage input to the navigation receiver assembly dropping temporarily.

DTC Code

DTC Detection Condition

Trouble Area

B158F

A video or audio signal is interrupted when the battery voltage drops.
  • Navigation receiver assembly
  • Harness or connector

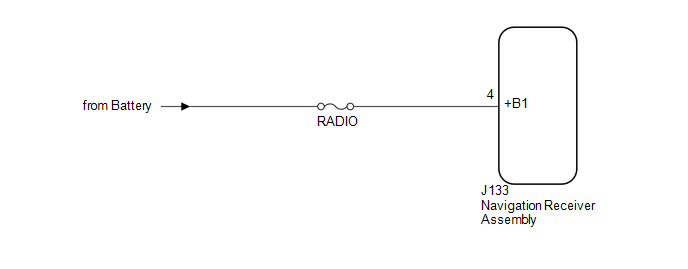

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK VEHICLE SIGNAL (OPERATION CHECK)

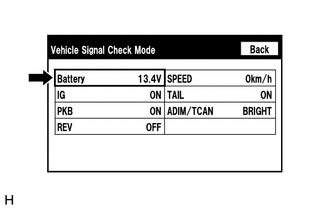

(a) Enter the "Vehicle Signal Check Mode" screen. [Refer to Check Vehicle Signal in Operation Check (See page )]

(b) Check that the battery voltage.

Standard voltage:

11 to 14 V

HINT:

This display is updated once per second. As a result, it is normal for the display to lag behind the actual switch operation.

NG

GO TO STEP 3

OK

2.

CHECK FOR DTC

(a) Clear the DTCs (See page ).

(b) Check for DTCs (See page ).

OK:

No DTCs are output.

Result

Result

Proceed to

OK

A

NG (for Column Shift Type)

B

NG (for Floor Shift Type)

C
A

USE SIMULATION METHOD TO CHECK

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

C

REPLACE NAVIGATION RECEIVER ASSEMBLY

3.

CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY POWER SOURCE)

(a) Disconnect the navigation receiver assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

J133-4 (+B1) - Body ground

Always

11 to 14 V
Text in Illustration

*a

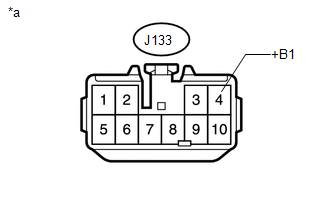

Front view of wire harness connector

(to Navigation Receiver Assembly)
Result

Result

Proceed to

OK (for Column Shift Type)

A

OK (for Floor Shift Type)

B

NG

C
A

REPLACE NAVIGATION RECEIVER ASSEMBLY

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR
