Toyota Tundra Owners Manual: Back window

Toyota Tundra Owners Manual / Operation of each component / Opening, closing the windows and moon roof / Back window

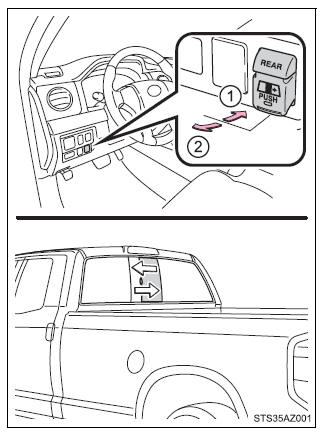

Opening and closing

Open/close

Push the lock release lever and slide the back window.

Opening, closing the windows and moon roof

■Closing the back window Make sure that the back window is securely closed after closing it.

WARNING

■Caution while driving Keep the back window closed.

This not only keeps personal belongings from being thrown out, but also prevents exhaust gases from entering the vehicle.

Power back window

Opening and closing

Double Cab models

Opening
Closing

Opening, closing the windows and moon roof

CrewMax models

Opening
Closing

Opening, closing the windows and moon roof

■The power back window can be operated when The engine switch is in the "ON" position.

■Operating the power back windows after turning the engine off The power back windows can be operated for approximately 43 seconds after the engine switch is turned to the "ACC" or "LOCK" position. They cannot, however, be operated once either front door is opened.

WARNING

■Closing the back window Observe the following precautions.

Failure to do so may result in death or serious injury.

The driver is responsible for all the power back window operations, including the operation for the passengers. In order to prevent accidental operation, especially by a child, do not let a child operate the power back window. It is possible for children and other passengers to have body parts caught in the power back window.
Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.
When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

■Caution while driving Keep the back window closed.

This not only keeps personal belongings from being thrown out, but also prevents exhaust gases from entering the vehicle.

Power windows

Moon roof
