Toyota Tundra Owners Manual: Headlight switch

The headlights can be operated manually or automatically.

Operating instructions

Operating the switch turns on the lights as follows:

For U.S.A.

  1. The headlights, daytime running lights and all the lights listed above turn on and off automatically.

    (When the engine switch is in the "ON" position.)

  2.   The side marker, parking, tail, license plate, instrument panel lights, and daytime running lights turn on.

  3.   The headlights and all lights listed above (except daytime running lights) turn on.

  4. The daytime running lights turn off.

Operating the lights and wipers

For Canada

  1.   Off
    The daytime running lights turn on.

  2. The side marker, parking, tail, license plate, instrument panel lights, and daytime running lights turn on.

  3.   The headlights and all lights listed above (except daytime running lights) turn on.

  4. The headlights, daytime running lights and all the lights listed above turn on and off automatically.

    (When the engine switch is in the "ON" position.)

Operating the lights and wipers

Turning on the high beam headlights

  1. With the headlights on, push the lever away from you to turn on the high beams.

    Pull the lever toward you to the center position to turn the high beams off.

  2. Pull the lever toward you and release it to flash the high beams once.

    You can flash the high beams with the headlights on or off.

Operating the lights and wipers

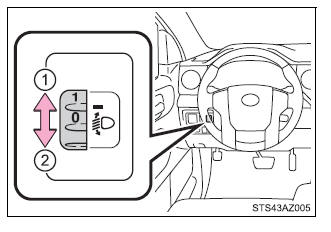

Manual headlight leveling dial

The level of the headlights can be adjusted according to the number of passengers and the loading condition of the vehicle.

  1. Raises the level of the headlights
  2. Lowers the level of the headlights

Operating the lights and wipers

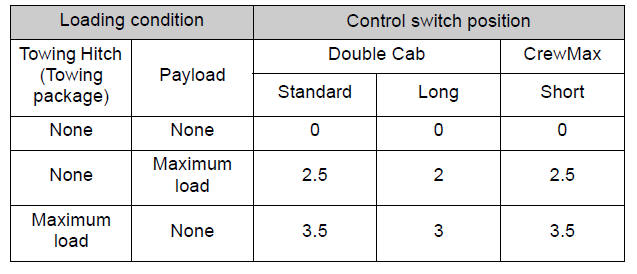

■ Guide to dial settings

Operating the lights and wipers

■Daytime running light system

  • The daytime running lights illuminate using the same lights as the parking lights and illuminate brighter than the parking lights.
  • To make your vehicle more visible to other drivers during daytime driving, the daytime running lights turn on automatically when all of the following conditions are met. (The daytime running lights are not designed for use at night.)
    • The engine is running
    • The parking brake is released
    • The headlight switch is in the (Canada only), or * position

*: When the surroundings are bright

The daytime running lights remain on after they illuminate, even if the parking brake is set again.

  • For the U.S.A.: Daytime running lights can be turned off by operating the switch.
  • For the Canada: Daytime running lights are not designed for use at night.
  • Compared to turning on the headlights, the daytime running light system offers greater durability and consumes less electricity, so it can help improve fuel economy.

■Headlight control sensor (vehicles with automatic headlight system) The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield.

Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight system to malfunction.

■Automatic light off system

  • When the headlights come on: The headlights and tail lights turn off 30 seconds after a door is opened and closed if the engine switch is turned to the "ACC" or "LOCK" position. (The lights turn off immediately if the button on the key is pressed after all the doors are locked.)
  • When only the tail lights come on: The tail lights turn off automatically if the engine switch is tuned to the "ACC" or "LOCK" position and the driver's door is opened.

Vehicles with automatic headlight system: If any of the doors is kept open, the lights automatically turn off after 20 minutes.

To turn the lights on again, turn the engine switch to the "ON" position, or turn the light switch off once and then back to or .

■Light reminder buzzer A buzzer sounds when the key is removed from the engine switch and the driver's door is opened while the lights are turned on.

■Customization that can be configured at Toyota dealer Settings (automatic light off system) can be changed.

NOTICE

■To prevent battery discharge Do not leave the lights on longer than necessary when the engine is not running.

    Operating the lights and wipers

    Automatic High Beam
