Toyota Tundra Service Manual: Removal

REMOVAL

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See page ).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. RELEASE PARKING BRAKE PEDAL

4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

(See page )

5. DISCONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

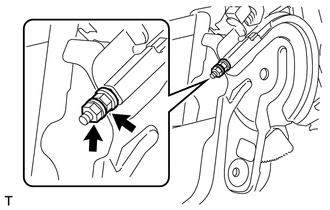

(a) Remove the lock nut and adjustment nut.

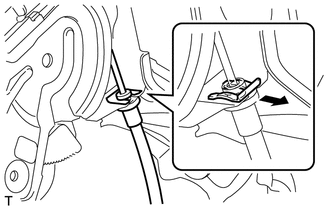

(b) Remove the clip.

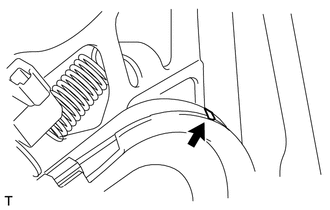

(c) Using a screwdriver, slowly bend up the claw.

NOTICE:

Be careful not to damage the No. 1 parking brake cable or claw.

(d) Disconnect the parking brake cable from the parking brake control pedal.

6. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

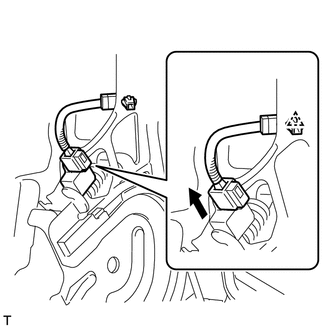

(a) Disconnect the connector.

(b) Detach the wire harness clamp from the control pedal.

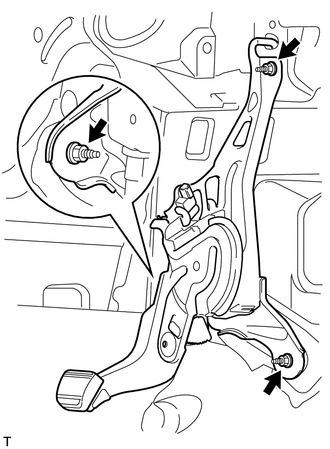

(c) Remove the 3 nuts and parking brake control pedal from the body.

    Reassembly
