REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

Do not allow foreign matter, etc. to contact the ABS rotor bearing.

PROCEDURE

1. INSTALL BRAKE DRUM OIL DEFLECTOR

(a) Install a new deflector gasket and deflector to the rear axle shaft.

HINT:

Align the 2 oil drain holes.

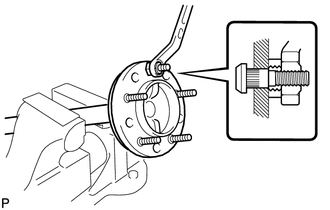

(b) Temporarily install a washer and nut to 5 new hub bolts as shown in the illustration.

(c) Install the hub bolts by tightening each nut.

(d) Removed the washer and nut from each hub bolt.

2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

(a) Position the parking brake plate on a new rear axle hub and bearing.

NOTICE:

Make sure to securely fit the bearing to the parking brake plate.

(b) Using 2 socket wrenches and a press, press in the 4 housing bolts.

3. INSTALL REAR AXLE SHAFT

(a) Install the washer and a new retainer to the axle hub as shown in the illustration.

NOTICE:

  • Install the washer with its tapered surface facing downward.
  • Install the retainer with its chamfered surface facing downward.

(b) Using SST and a press, press in the rear axle shaft.

SST: 09631-12090

SST: 09726-40010

SST: 09951-01100

NOTICE:

Make sure to securely fit the bearing to the rear axle shaft.

4. INSTALL REAR AXLE SHAFT SNAP RING

(a) Using a snap ring expander, install a new snap ring.
