Toyota Tundra Service Manual: Front Door Belt Moulding(for Double Cab)

Toyota Tundra Service Manual / Vehicle Interior / Exterior / Front Door Belt Moulding(for Double Cab)

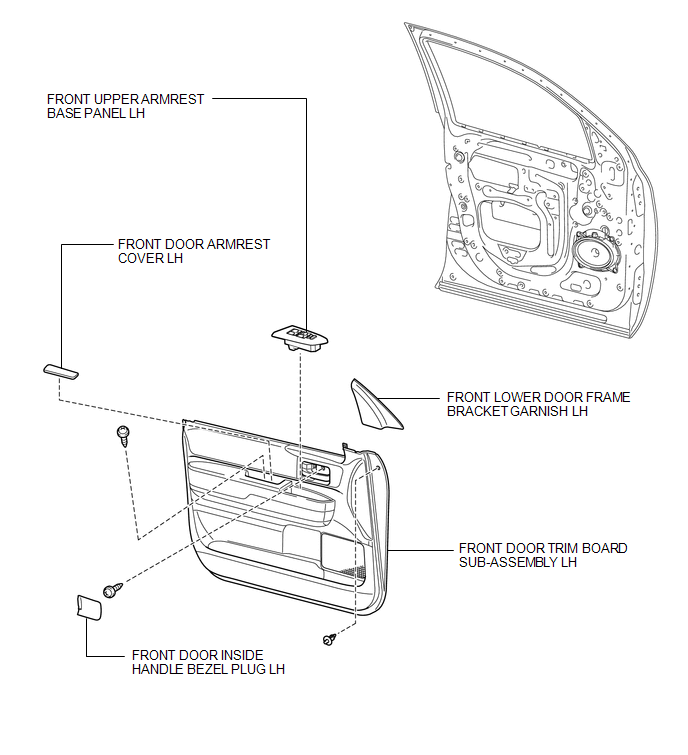

Components

COMPONENTS

ILLUSTRATION

ILLUSTRATION

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. INSTALL FRONT OUTER DOOR GLASS WEATHERSTRIP ASSEMBLY LH

(a) Attach the claw to install the weatherstrip outer.

2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

4. INSTALL FRONT DOOR ARMREST COVER LH

5. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH

6. INSTALL FRONT UPPER ARMREST BASE PANEL LH

7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

2. REMOVE FRONT UPPER ARMREST BASE PANEL LH

3. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH LH

4. REMOVE FRONT DOOR ARMREST COVER LH

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

6. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

7. REMOVE FRONT OUTER DOOR GLASS WEATHERSTRIP ASSEMBLY LH

(a) Put protective tape around the weatherstrip outer.

(b) Using a moulding remover, detach the claw and remove the weatherstrip.
