REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY

(See page )

2. REMOVE FRONT SEAT CUSHION SHIELD LH

3. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

4. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

5. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

6. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

7. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH

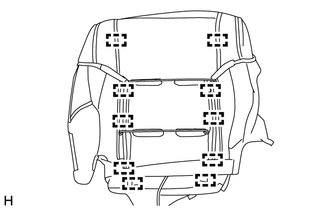

(a) Detach the 10 tack pins to remove the front seat cushion heater assembly LH.
