Toyota Tundra Service Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH (w/ Seat Under Tray)

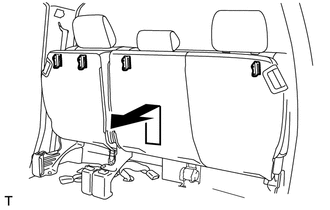

(a) Pull the 2 reclining adjusting handles and fold up the seat cushion.

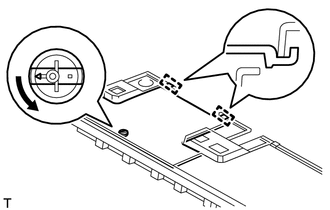

(b) Turn the knob and open the luggage compartment side cover sub-assembly LH.

(c) Detach the hooks and remove the luggage compartment side cover sub-assembly LH.

2. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH (w/ Seat Under Tray)

(a) Turn the knob and open the luggage compartment side cover sub-assembly RH.

(b) Detach the hooks and remove the luggage compartment side cover sub-assembly RH.

3. REMOVE SEAT FLOOR BOX (w/ Seat Under Tray)

(a) Remove the 4 knobs.

(b) Detach the claw and remove the seat floor box.

4. REMOVE REAR SEAT INNER BELT ASSEMBLY

(a) Pull out the rear seat inner belt assemblies.

5. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

6. REMOVE REAR SEAT ASSEMBLY

(a) Remove the 6 bolts.

(b) Lift the rear seat assembly to detach the 4 hooks, and remove the rear seat assembly.

NOTICE:

Be careful not to damage the vehicle body.
